Async RL in Pure JAX

Scaling RL has become the core approach in unlocking the capabilities of many frontier models today. Thinking beyond current RLVR recipes potentially requires changes across different actors within the stack. Existing frameworks such as Tunix are great for production level RLVR; however, for experimentation, they are quite heavy and require Pathways to scale RL on TPUs. To make this experimentation easier, we introduce a lightweight, performant asynchronous RL stack in pure JAX. We share a work log alongside a few engineering insights we've seen along the way.

Code: github.com/adityamakkar000/asyncRL

Special thanks to the TRC program, especially Zak, for the TPU support!

Contents

Async Design

Following traditional policy-gradient methods, early RLVR experiments followed a synchronous process alternating between training and generation [1]. This synchrony introduces the straggler problem. Suppose for each of the $P$ prompts, $G$ samples are generated for a total of $PG$ sequences. If the inference engine can decode at most $S < PG$ sequences concurrently, the generation is split across multiple batches. With continuous batching, the accelerators can be fully utilized for intermediate batches, but the last in-flight decode batch would result in some idle compute. How inefficient is this in practice? PipelineRL reports ~10% at large batch sizes [2].

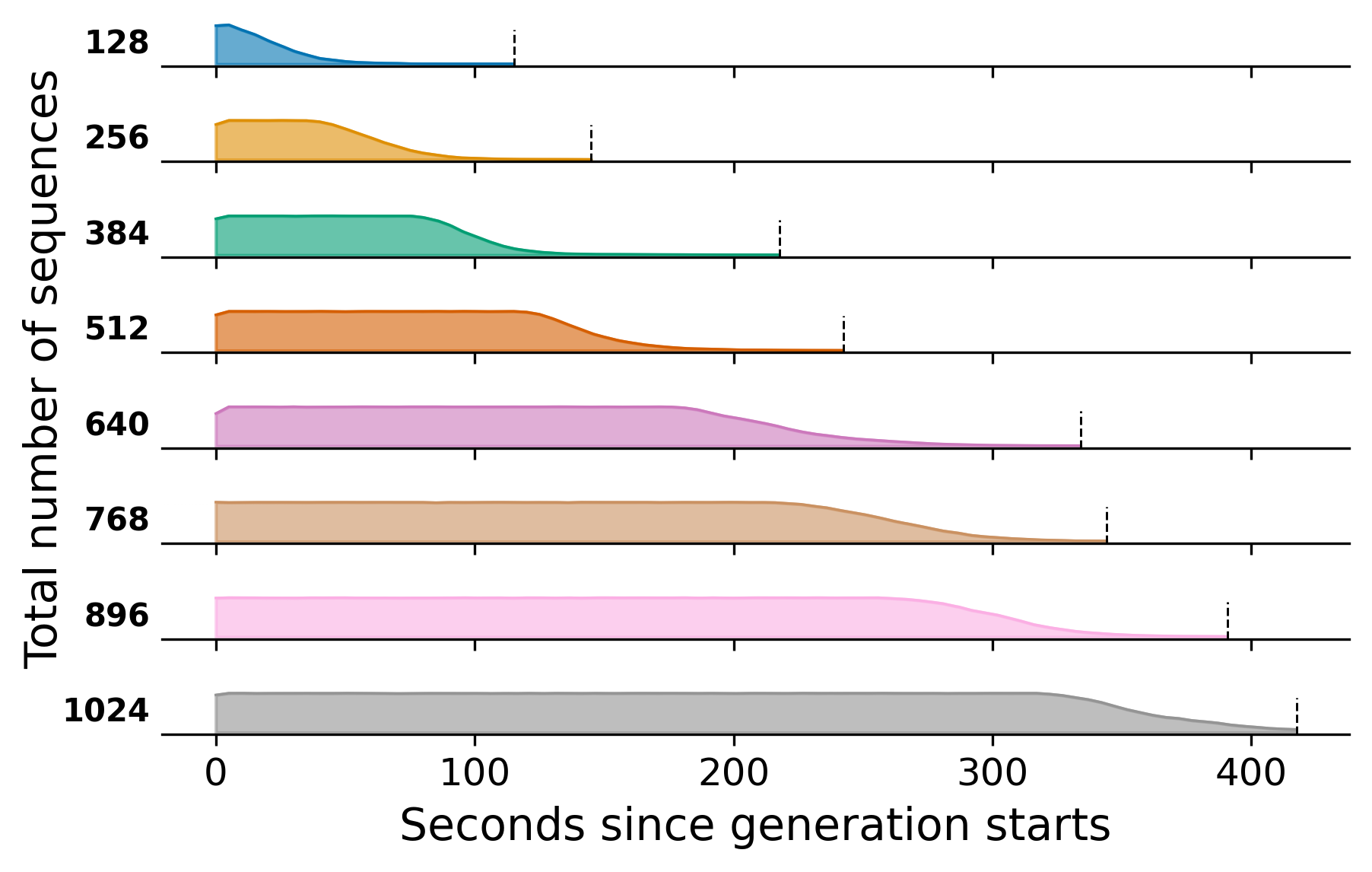

PipelineRL proposes a natural solution to the straggler problem called AsyncRL, which disaggregates the accelerators to be either train or inference workers running in parallel.

Using an async multi-actor system for RL is not a new idea, Asynchronous Methods for Deep Reinforcement Learning was released 10 years ago¹. What has changed over the past few years is the scale of RL. Modern-day RLVR systems coordinate hundreds to thousands of accelerators in a multi-actor system which contrasts against the traditional SPMD paradigm used to scale pretraining [3, 4].

There are a few axes that differentiate async RL frameworks [5]. A major one is the coordination between the actors in the system: the trainer which performs the gradient update (implemented as the AsyncTrainWorker) and the inference engine which rolls out with the current policy (implemented as the AsyncInferenceWorker).

The first question that arises is how should the train and inference workers be allocated. There are two main approaches to this. The first is allocating a single node and splitting the hosts. For example, suppose we allocate a TPU-v5p-32² which has 4 devices per host, for a total of 4 hosts. The hosts can be split such that each host becomes either a train or inference worker.

With this method, there is relatively low orchestration overhead as a job is submitted with one TPU resource allocation and the train.py manages the splitting. Since the workers are still on one global mesh, RDMA weight sync can easily be performed over ICI. However, this method is hard to scale as allocating larger contiguous TPU nodes is dependent on availability.

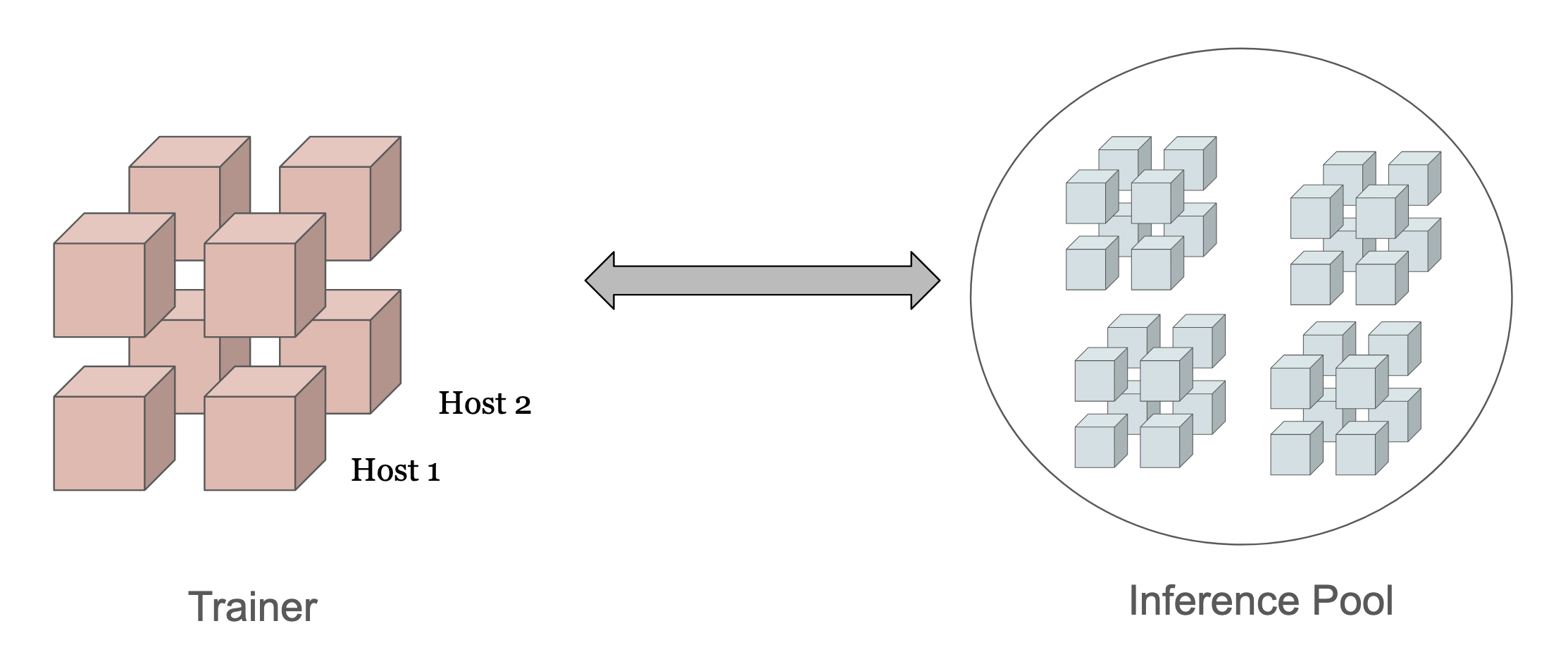

The other approach involves embracing the distributed nature of async RL by allocating separate nodes for training and inference. For example, we can allocate a TPU-v5p-16 for our trainer and then create a separate inference pool where we can allocate single nodes across different regions (e.g. 12 tpu-v6e-8 across US regions and even European regions). Most notably this was used by Cursor for the training of Composer 2.

This approach makes it easier to arbitrarily scale runs due to dynamic resource allocation (small number of fixed accelerators for the trainer, dynamic allocation for inference), but it adds a lot of overhead in terms of orchestration outside of the core training loop (e.g. checking for preempted workers, allocating and updating inference workers, etc.). Weight sync over RDMA is also not possible since the inference pool is not on the same mesh as the trainer. The best solution is using delta-weight sync, which sends the compressed weight deltas over the filesystem network [6, 7].

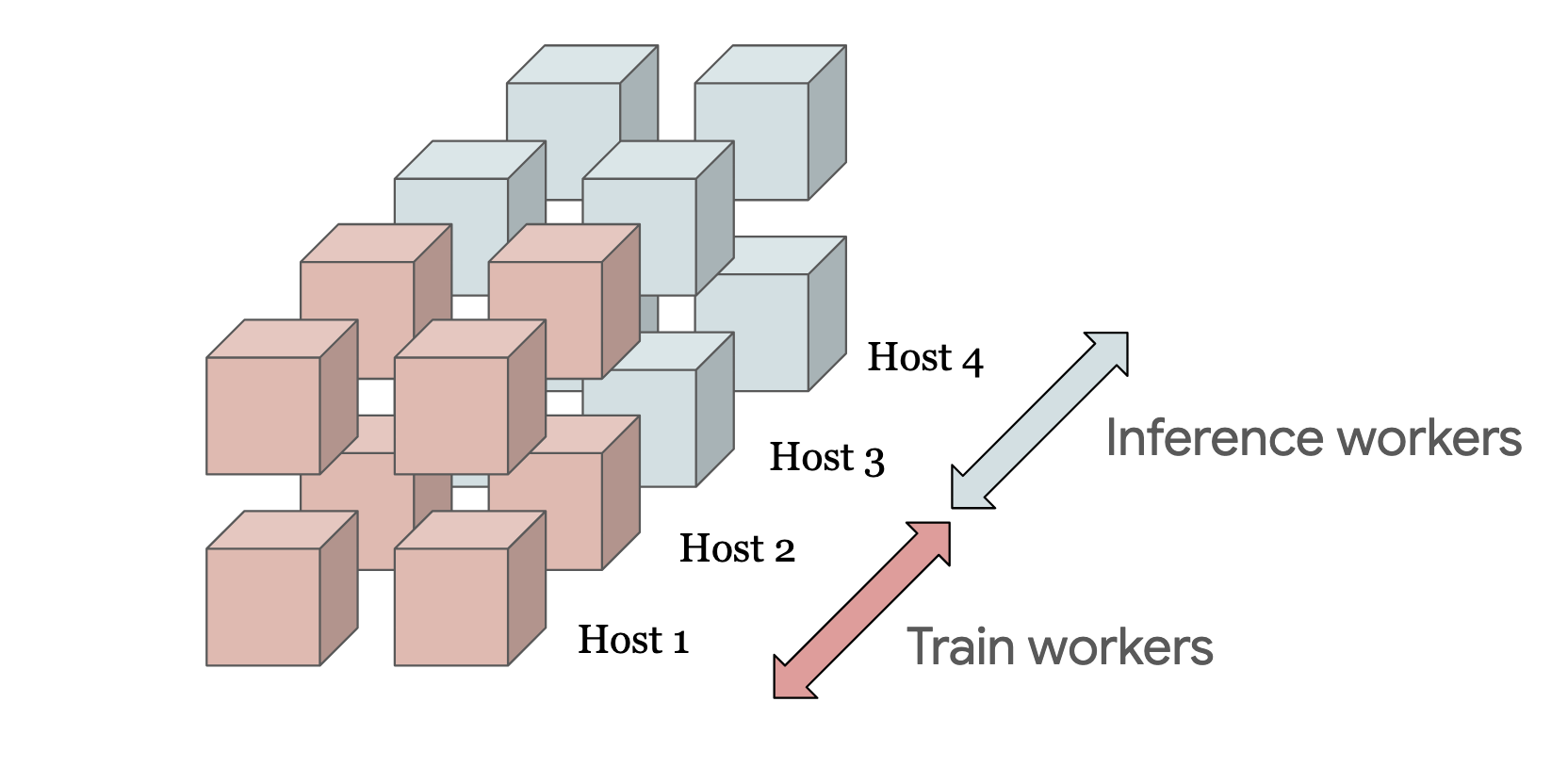

Since we were experimenting on smaller models (≤32B), we chose option 1 to keep the implementation simple to enable faster experimentation.

The same script will be launched on every host following JAX's multi-host orchestration design. Once JAX has initialized, the global devices can be partitioned into train and inference depending on the number of train hosts parsed from the async config and the corresponding meshes can be made³.

@hydra.main(version_base=None, config_path="./configs/train")
def main(cfg: DictConfig) -> None:
    stax.init_distributed_jax()

    train_workers = cfg.async_config.train_workers
    n_hosts = jax.process_count()
    assert n_hosts > train_workers > 0, "Number of train workers must be between 1 and total number of processes - 1"
    inference_workers = n_hosts - train_workers

    devices = np.array(jax.devices())
    devices_per_host = jax.local_device_count()

    train_devices = devices[: train_workers * devices_per_host].reshape(train_workers, devices_per_host)
    inference_devices = devices[train_workers * devices_per_host :].reshape(inference_workers, devices_per_host)

    train_mesh = jax.sharding.Mesh(
        train_devices,
        ("processes", "local_devices"),
        axis_types=(AxisType.Explicit, AxisType.Explicit),
    )

    inference_mesh = jax.sharding.Mesh(
        inference_devices,
        ("processes", "local_devices"),
        axis_types=(AxisType.Explicit, AxisType.Explicit),
    )
    global_mesh = jax.make_mesh(
        (jax.process_count(), jax.local_device_count()),
        ("processes", "local_devices"),
        axis_types=(AxisType.Explicit, AxisType.Explicit),
    )
    ...

if __name__ == "__main__":
    main()

To represent the async state, we can create an AsyncOptions object which will be initialized on every host.

@dataclass
class AsyncOptions:
    train_workers: int
    inference_workers: int
    queues: MPQueues
    train_mesh: jax.sharding.Mesh
    inference_mesh: jax.sharding.Mesh
    global_mesh: jax.sharding.Mesh

We can then check the rank of each process and if it is less than train_workers it is assigned to be an AsyncTrainWorker, otherwise it is assigned as an AsyncInferenceWorker.

@hydra.main(version_base=None, config_path="./configs/train")
def main(cfg: DictConfig) -> None:
    ...
    async_options = AsyncOptions(...)
    rank = jax.process_index()
    worker = (
        AsyncTrainWorker if rank < train_workers else AsyncInferenceWorker
    )(cfg, async_options)
    worker.start()

    logger.info(f"Process at {VM_IP} finished.", log_for_all=True)

Now that the train and inference workers have been split, we need to find a way to communicate between them. The inference engine needs to receive prompts from the trainer and the trainer must be able to access rollouts from the engine while controlling the staleness. Ideally, it would be convenient if the inference worker could just push rollouts onto a queue and the trainer could pull off this queue, but a normal queue in Python doesn't span across multiple processes which are split across hosts. There exists a Python module multiprocessing.managers which allows us to share the object over a network using RPCs. When all the hosts are initialized, one host is assigned as the "global" host (you can think of it like the 0^th rank, but it is not guaranteed to be the 0^th JAX rank) which starts a manager server process which owns the queue and is the central host for accessing it.

class MPQueues:
    prompt_queue: queue.Queue
    rollout_queue: queue.Queue
    weight_sync_queue: queue.Queue[str]
    inference_metrics_queue: queue.Queue[dict]
    eval_prompt_queue: queue.Queue
    eval_rollout_queue: queue.Queue
    eval_done_queue: queue.Queue[str]

    NAMES = (
        "prompt_queue",
        "rollout_queue",
        "weight_sync_queue",
        "inference_metrics_queue",
        "eval_prompt_queue",
        "eval_rollout_queue",
        "eval_done_queue",
    )

    def __init__(self, global_ip: str = GLOBAL_IP, port: int = PORT, key: bytes = KEY):
        self.global_ip = global_ip
        self.port = port
        self.key = key

    def register(self, maxsizes: dict[str, int] | None = None) -> None:
        maxsizes = maxsizes or {}
        for name in self.NAMES:
            local_queue = queue.Queue(maxsize=maxsizes.get(name, 0))
            QueueManager.register(f"get_{name}", callable=lambda q=local_queue: q)

    def start_server(self) -> None:
        def _serve():
            manager = QueueManager(address=("0.0.0.0", self.port), authkey=self.key)
            server = manager.get_server()
            logger.info(f"[Server] Queue server listening on {self.global_ip}:{self.port}...")
            server.serve_forever()

        threading.Thread(target=_serve, daemon=True).start()

In train.py the host whose VM_IP is equal to the GLOBAL_IP can start the central queue server.

def main(...):
    ...
    queues = MPQueues(GLOBAL_IP)
    queues.register(
        maxsizes={
            "prompt_queue": cfg.train_batch_size // cfg.loss_config.inference_config.group_size,
            "weight_sync_queue": inference_workers,
        }
    )

    if VM_IP == GLOBAL_IP:
        queues.start_server()
    sync_global_devices("serverReady")

All other hosts have access to their IP and the GLOBAL_IP which started the manager. These other processes will receive a proxy that enables the queue to act as a shared, single-process queue. These requests and data cross process boundaries through the proxy and are serialized via pickle. In this manner, each host creates its own connection to the prompt, rollout, weight sync and inference metrics queues and can place/receive data (push, pop, get) accordingly based on its role in the async system.

class MPQueues:
    ...

    def connect(self, retries: int = 6):
        manager = QueueManager(address=(self.global_ip, self.port), authkey=self.key)

        for _ in range(retries):
            try:
                manager.connect()
                for name in self.NAMES:
                    setattr(self, name, getattr(manager, f"get_{name}")())
                return
            except ConnectionError:
                logger.info(f"[Client] Waiting for server at {self.global_ip}...", log_for_all=True)
                time.sleep(1)

        raise ConnectionError(f"Could not connect to server at {self.global_ip} after {retries} attempts.")

and

def main(...):
    ...

    queues.connect()

    async_options = AsyncOptions(
        train_workers=train_workers,
        inference_workers=inference_workers,
        queues=queues,
        train_mesh=train_mesh,
        inference_mesh=inference_mesh,
        global_mesh=global_mesh,
    )

    logger.info(OmegaConf.to_yaml(cfg), log_for_all=True)

    rank = jax.process_index()
    worker = (
        AsyncTrainWorker if rank < train_workers else AsyncInferenceWorker
    )(cfg, async_options)
    worker.start()

    logger.info(f"Process at {VM_IP} finished.", log_for_all=True)

if __name__ == "__main__":
    main()

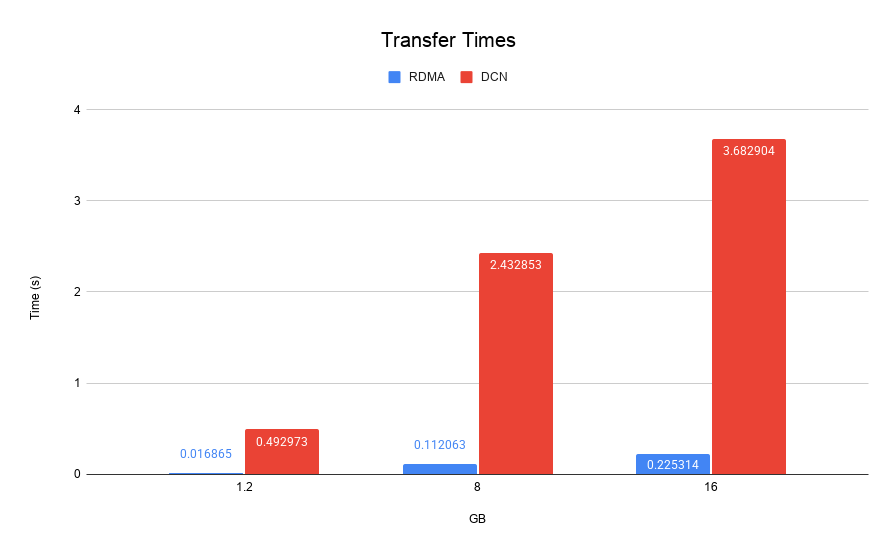

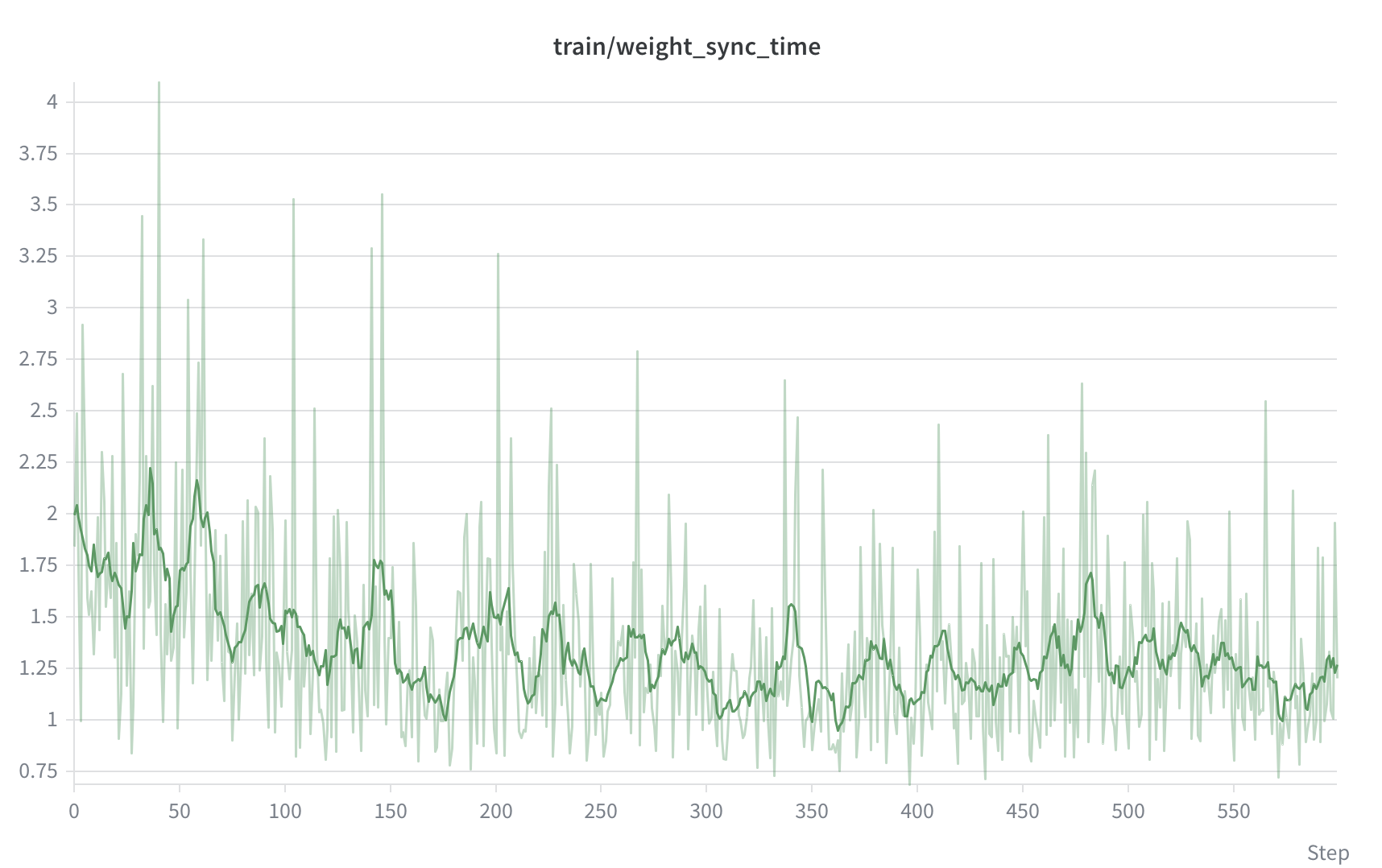

The last required communication between the train and inference workers is the weight sync, which will be described further below.

Inference

Many state-of-the-art systems use separate inference engines such as vLLM or SGLang⁴. However, on TPUs both vLLM and SGLang are still under active development. Since we wanted to experiment across the entire RL loop and were not targeting long-context inference at the moment (≤8192 sequence length), we instead use a simple generation loop. This gives us end-to-end control over the generations, stability and weight synchronization.

There are two required primitives for inference: prefill and decode.

Prefill

Prefill is relatively straightforward in which a compiled forward pass builds the KV cache and initial InferenceState. Since JAX arrays are immutable, the whole state is allocated upfront and dynamically sliced to its corresponding position (such as the KV cache and output tokens). Note, since the prefill function does not sample, there is no need to materialize the vocab distribution.

class SingleInferenceReplica:
    ...

    def prefill(
        self, input_tokens: Array, seq_lens: Array, params: PyTree, key: Array, prompt_id_offset: int
    ) -> tuple[InferenceState, Array]:
        logger.info(f"Compiling prefill for sequence length {input_tokens.shape[1]}", log_for_all=True)

        max_prefill_prompts = self.max_prefill_prompts
        kv_cache_dtype = self.config.kv_cache_dtype
        next_key, key = jax.random.split(key)

        with jax.named_scope("prefill"):
            kv_cache = self.model.init_kv_cache(
                max_prefill_prompts,
                length=self.max_attention_length,
                dtype=kv_cache_dtype,
                sharding=self.kv_cache_sharding,
            )
            _hidden, out_cache = self.model.apply(
                params, x=input_tokens[:, :-1], sequence_lens=seq_lens - 1, kv_cache=kv_cache, apply_lm_head=False
            )
            out_tokens = (
                jnp.ones((max_prefill_prompts, self.max_attention_length), dtype=jnp.int32, out_sharding=self.sharding)
                * self.pad_token
            )
            out_logprobs = jnp.zeros(
                (max_prefill_prompts, self.max_attention_length), dtype=jnp.float32, out_sharding=self.sharding
            )
            out_tokens = jax.lax.dynamic_update_slice_in_dim(out_tokens, input_tokens, 0, axis=1)
            out_logprobs = jax.lax.dynamic_update_slice_in_dim(
                out_logprobs,
                -jnp.inf * jnp.ones(input_tokens.shape, dtype=jnp.float32, out_sharding=self.sharding),
                0,
                axis=1,
            )

        state = InferenceState(
            next_token=input_tokens[:, -1:],
            seq_lens=seq_lens,
            kv_cache=out_cache,
            key=key,
            stop_mask=jnp.zeros((max_prefill_prompts, 1), dtype=bool, out_sharding=self.sharding),
            end_of_think=jnp.zeros((max_prefill_prompts, 1), dtype=bool, out_sharding=self.sharding),
            out_tokens=out_tokens,
            out_logprobs=out_logprobs,
            prompt_id=jnp.arange(input_tokens.shape[0], out_sharding=self.sharding)[:, None] + prompt_id_offset,
        )
        return state, next_key

Till this point, everything has been a compiled JAX function. Since XLA compiles fixed shapes, the tokenize function buckets each batch into the closest power of two which upper-bounds the number of distinct compiled graphs to $\log_2(\text{max\_seq\_len})$. The prefill step function leverages this and memoizes each unique compilation into a cache that can be invoked according to the appropriate precompiled length.

Decode

The decode step is a core part of the generation loop. The first pass through is relatively simple as an InferenceState is taken in alongside the parameters and applied to the model with standard temperature based sampling (RLVR training runs usually don't use top-p or top-k, hence there is no requirement to use fused versions of them).

def decode(state: InferenceState, params: PyTree) -> InferenceState:
    logger.info(f"Compiling decode step for attention length {state.kv_cache[0].k.shape[1]}", log_for_all=True)
    key, sample_key = jax.random.split(state.key)

    with jax.named_scope("fwd_pass"):
        logits, out_cache = self.model.apply(
            params,
            x=state.next_token,
            sequence_lens=state.seq_lens,
            kv_cache=state.kv_cache,
        )

    with jax.named_scope("sampling"):
        next_token, next_log_prob = naive_sample(
            logits,
            sample_key,
            temperature=self.config.temperature,
            top_k=None,
            top_p=None,
        )

There are 2 state handling features: the end of sequence masking logic (limits the max sequence length) and the reasoning budget (limits the CoT reasoning; used in many scaling RL papers [8, 9, 10]). Checking for the former uses either a length stop mask to determine if the max sequence length has been exceeded, or a separate EOS stop mask which checks if the newly generated token was an eos_id token.

def _maybe_force_eos(
    next_token: Array,  # [B, 1]
    next_log_prob: Array,  # [B, 1]
    stop_mask: Array,  # [B, 1]
    seq_lens: Array,  # [B]
    *,
    max_seq_len: int,
    eos_token_id: int,
):
    # using seq_len + 1 since the current seq len doesn't account for the newly generated token, meaning the next
    # token generated will be at the max seq len and hence should be <eos>
    length_stop_mask = stop_mask | (seq_lens[:, None] + 1 >= max_seq_len)
    eos_stop_mask = next_token == eos_token_id
    stop_mask = eos_stop_mask | length_stop_mask

    # always set next token for the stop mask to be eos
    # if length_stop_mask is true then we want to force prob 1 (log = 0) to be eos
    # otherwise use the real gen prob
    next_token = jnp.where(stop_mask, eos_token_id, next_token)
    next_log_prob = jnp.where(length_stop_mask, 0, next_log_prob)

    return next_token, next_log_prob, stop_mask

Reasoning budgets are implemented by inserting a phrase to ensure the thinking tokens end and an answer is forced naturally using a phrase such as "Okay, time is up. Let me stop thinking and formulate a final answer now. \n\n<end_of_think>". The actual implementation of _maybe_force_eot is a bit tricky since the phrase spans multiple tokens and the process of decoding unrolls a single token at a time to ensure it's compilable. The implementation backtracks the number of tokens in the phrase, checking each position and inserting the phrase token if the current_len + remaining_tokens_in_stop_phrase == reasoning_length. If the final token is inserted, then the end of thinking mask is set to true.

def _maybe_force_eot(
    next_token: Array,  # [B, 1]
    next_log_prob: Array,  # [B, 1]
    end_of_think_mask: Array,  # [B, 1]
    seq_lens: Array,  # [B]
    *,
    reasoning_budget: int,
    token_sequence: list[int],
):
    think_token = token_sequence[-1]
    total_tokens = len(token_sequence)

    end_of_think_mask = end_of_think_mask | (next_token == think_token)

    for t in range(total_tokens):
        # NOTE: only 1 token in the loop can be inserted at most since the equality is different
        # for each token
        insert_token = (seq_lens[:, None] + (total_tokens - t)) == reasoning_budget
        interrupt_mask = insert_token & ~end_of_think_mask
        next_token = jnp.where(interrupt_mask, token_sequence[t], next_token)
        next_log_prob = jnp.where(interrupt_mask, 0.0, next_log_prob)

    end_of_think_mask = end_of_think_mask | interrupt_mask

    return next_token, next_log_prob, end_of_think_mask

Integrating into the decode loop, if a reasoning budget is set, the interrupt thinking function is used while the EOS function is always called. Finally, the selected tokens are replaced.

def decode(...):
    ...
    with jax.named_scope("masking"):
        end_of_think = state.end_of_think
        if self.config.reasoning_budget is not None:
            next_token, next_log_prob, end_of_think = _maybe_force_eot(
                next_token,
                next_log_prob,
                state.end_of_think,
                state.seq_lens,
                reasoning_budget=self.config.reasoning_budget,
                token_sequence=self.thinking_tokens,
            )

        next_token, next_log_prob, stop_mask = _maybe_force_eos(
            next_token,
            next_log_prob,
            state.stop_mask,
            state.seq_lens,
            max_seq_len=self.config.max_seq_len,
            eos_token_id=self.eos_token,
        )

    rows = jnp.arange(state.out_tokens.shape[0])
    write_index = out_cache[0].length
    out_tokens = state.out_tokens.at[rows, write_index].set(next_token[:, 0])
    out_logprobs = state.out_logprobs.at[rows, write_index].set(next_log_prob[:, 0])

    return InferenceState(
        next_token=next_token,
        kv_cache=out_cache,
        key=key,
        seq_lens=state.seq_lens + 1,
        stop_mask=stop_mask,
        end_of_think=end_of_think,
        out_tokens=out_tokens,
        out_logprobs=out_logprobs,
        prompt_id=state.prompt_id,
    )

Continuous Batching

To create the continuous batching loop, the decode function should be run until at least 1 rollout is finished so that a substitution can occur with the index of the next prompt (each prompt is rolled out $G$ times).

def _decode_single_loop(
    self, state: InferenceState, params: PyTree, prefill_prompts: InferenceState, next_index: int
) -> tuple[InferenceState, Array, Array, Array, Array]:
    with jax.named_scope("single_decode_loop"):
        before_length = state.kv_cache[0].length
        state = jax.lax.while_loop(
            lambda state: ~jnp.any(state.stop_mask),
            lambda state: self.decode(state, params),
            state,
        )
        after_length = state.kv_cache[0].length

        index = jnp.argmax(state.stop_mask[:, 0], keepdims=True)
        tokens, logprobs, prompt_ids = (
            state.out_tokens[index],
            state.out_logprobs[index],
            state.prompt_id[index],
        )

    with jax.named_scope("sub_next_batch"):
        next_batch = self.create_batch(prefill_prompts, next_index)
        state = self.sub_batch(state, next_batch)

    return state, tokens, logprobs, prompt_ids, jnp.max(after_length - before_length)

For the substitution, the prefill prompt corresponding to the index is sliced, the padding is removed by shifting it back and then it is replaced.

def create_batch(self, prefill_prompts: InferenceState, index: int | Array) -> InferenceState:
    def ds(x):
        return jax.lax.dynamic_slice_in_dim(x, index, 1, axis=0)

    return InferenceState(
        next_token=ds(prefill_prompts.next_token),
        kv_cache=[
            KVCache(k=ds(cache.k), v=ds(cache.v), length=ds(cache.length)) for cache in prefill_prompts.kv_cache
        ],
        key=prefill_prompts.key,
        seq_lens=ds(prefill_prompts.seq_lens),
        stop_mask=ds(prefill_prompts.stop_mask),
        end_of_think=ds(prefill_prompts.end_of_think),
        out_tokens=ds(prefill_prompts.out_tokens),
        out_logprobs=ds(prefill_prompts.out_logprobs),
        prompt_id=ds(prefill_prompts.prompt_id),
    )

def sub_batch(self, state: InferenceState, new_batch: InferenceState) -> InferenceState:
    index = jnp.argmax(state.stop_mask[:, 0], keepdims=True)
    new_batch = new_batch.roll(new_batch.seq_lens - 1)
    return state.sub(new_batch, index)

In the generation loop, the single decode function is first compiled (and the inference state arg is donated, as to alias the cache), then bookkeeping is done for the local prefill prompt batch to the global prompt ids. The local-to-global encoding is needed since a past state can be passed to the function. For example, if the queue of prompt decodes is [0, 0, 0, 1, 1, 1] and the in-flight decode size is 3, the last batch of 3 remaining prompts won't finish. So either static batching is done where jnp.where(~jnp.all(stop_mask)) is used for the jnp.where condition or the in-flight generation is paused, a new batch is prefilled and then the generation is resumed. The latter was chosen to avoid the same problem PipelineRL was trying to fix.

def continuous_batch(
    self, prefill_prompts: InferenceState, state: InferenceState | None
) -> tuple[InferenceState, dict[str, float]]:
    if self.decode_fn is None:
        self.decode_fn = jax.jit(self._decode_single_loop, donate_argnums=(0,))

    global_ids = jax.device_get(prefill_prompts.prompt_id).flatten().tolist()
    local_to_global = {i: gid for i, gid in enumerate(global_ids)}

    prompt_queue: list[int] = [
        i
        for i in range(self.max_prefill_prompts)
        for _ in range(self.global_rollouts[local_to_global[i]].n_rollouts)
    ]

    finished = {"tokens": [], "logprobs": [], "prompt_ids": []}
    steps = []

If no prior state is provided, an initial state is created by popping off prompts to fill the in-flight batch. The global rollouts map an id to an InferenceRollout object which tracks the data sample (has a prompt + answer for the verifier), decoded strings, tokens, logprobs, as well as the oldest weight iteration (useful for staleness management). Since it stores the raw decode tokens and logprobs, the trainer operates on a token-in, token-out (TITO) principle [11].

@dataclass
class InferenceRollout:
    sample: Sample
    rollout_strs: list[str]
    rollout_tokens: list[np.ndarray]
    rollout_logprobs: list[np.ndarray]
    weight_iteration: list[int]
    n_rollouts: int = 1
    is_eval: bool = False

    def __len__(self):
        assert len(self.rollout_logprobs) == len(self.rollout_tokens), (
            "rollout_logprobs and rollout_tokens must have the same length"
        )
        return len(self.rollout_tokens)

    @property
    def lag(self) -> int:
        return min(self.weight_iteration) if self.weight_iteration else 0

class InferenceWorker:
    ...

    def continuous_batch(
        self, prefill_prompts: InferenceState, state: InferenceState | None
    ) -> tuple[InferenceState, dict[str, float]]:
        ...

        with Tracker(timer=True) as t:
            if state is None:
                ids = [prompt_queue.pop() for _ in range(self.config.max_decode_batch_size)]
                state = self.create_initial_state(prefill_prompts, ids)
                for i in ids:
                    self.global_rollouts[local_to_global[i]].weight_iteration.append(self.weight_iteration)

            while len(prompt_queue) > 0:
                next_index = prompt_queue.pop()

                (state, tokens, logprobs, prompt_ids, n_steps) = self.decode_fn(
                    state, self.params, prefill_prompts, next_index
                )

                finished["tokens"].append(tokens)
                finished["logprobs"].append(logprobs)
                finished["prompt_ids"].append(prompt_ids)

                steps.append(n_steps)
                self._maybe_update_params()
                self.global_rollouts[local_to_global[next_index]].weight_iteration.append(self.weight_iteration)

            gathered = {k: np.concatenate([jax.device_get(x) for x in v], axis=0) for k, v in finished.items()}

Metrics can then be computed and returned alongside the in-flight batch.

def continuous_batch(
    self, prefill_prompts: InferenceState, state: InferenceState | None
) -> tuple[InferenceState, dict[str, float]]:
    ...

    for i in range(gathered["tokens"].shape[0]):
        pid = gathered["prompt_ids"][i].item()
        self.global_rollouts[pid].rollout_tokens.append(gathered["tokens"][i])
        self.global_rollouts[pid].rollout_logprobs.append(gathered["logprobs"][i])

    queued_steps: int = sum(int(jax.device_get(s)) for s in steps)
    subbed_steps = len(steps)

    tokens_per_second = queued_steps * self.config.max_decode_batch_size / t.data["time"]
    sequences_per_second = queued_steps / t.data["time"]
    decode_metrics = {
        "decode_steps": queued_steps,
        "decode_steps_subbed": subbed_steps,
        "decode_time": t.data["time"],
        "decode_tps": tokens_per_second,
        "decode_sps": sequences_per_second,
    }
    return state, decode_metrics

End To End Generation

When integrating all this together, the start(self, key: Array) method controls the end-to-end generation loop.

def start(self, key: Array):
    key = jax.device_put(key, self.sharding)
    prev_state = None

    while True:
        with Tracker(timer=True) as t:
            input_tokens, seq_lens, prompt_metrics = self.get_samples()
            key, gen_key = jax.random.split(key)
    ...

First, samples are collected by pulling off the eval prompt queue (as it has higher priority), followed by the train prompt queue. Each sample is then assigned an index in the global rollouts dictionary, with its corresponding InferenceRollout(...) initialized and the prompts are tokenized.

def get_samples(self):
    with Tracker(timer=True) as t1:
        samples: list[tuple[Sample, bool]] = []
        while len(samples) < self.max_prefill_prompts:
            try:
                samples.append((self.async_options.queues.eval_prompt_queue.get_nowait(), True))
            except Empty:
                break

        n_eval = len(samples)
        while len(samples) < self.max_prefill_prompts:
            samples.append((self.async_options.queues.prompt_queue.get(timeout=TIMEOUT), False))

    with Tracker(timer=True) as t2:
        for i, (sample, is_eval) in enumerate(samples):
            self.global_rollouts[self.prompt_id_offset + i] = InferenceRollout(
                sample=sample,
                rollout_tokens=[],
                rollout_logprobs=[],
                rollout_strs=[],
                weight_iteration=[],
                n_rollouts=(self.eval_group_size or self.config.group_size) if is_eval else self.config.group_size,
                is_eval=is_eval,
            )

        prompts = [sample.prompt for sample, _ in samples]
        input_tokens, seq_lens = self.tokenize(prompts)

    metrics = {"get_prompts_time": t1.data["time"], "tokenize_time": t2.data["time"], "eval_prompts": n_eval}
    return input_tokens, seq_lens, metrics

The prepared batch is sent to the batch_rollout function next.

def start(self, key: Array):
    ...

    while True:
        with Tracker(timer=True) as t:
            ...
            prev_state, batch_metrics = self.batch_rollout(input_tokens, seq_lens, gen_key, prev_state)
            gather_metrics = self.gather_rollouts()

Since the batch_tokens and seq_lens are NumPy arrays located on the CPU, they need to be passed to the TPU which can be done with the jax.device_put(...) function with the sharding set to be replicated per device, self.sharding = jax.NamedSharding(self.mesh, P()). Once the data has been placed, the prefill step function is called which passes the returned prefill state into the continuous batch function. The new inference state is updated and the inference metrics are returned.

def batch_rollout(
    self, batch_tokens: np.ndarray, seq_lens: np.ndarray, key: Array, prev_state: InferenceState | None
) -> tuple[InferenceState, dict[str, float]]:
    x_batch_sharded = jax.device_put(batch_tokens, self.sharding)
    seq_lens_sharded = jax.device_put(seq_lens, self.sharding)

    prefill_state, prefill_metrics = self.prefill_step(x_batch_sharded, seq_lens_sharded, self.params, key)
    prev_state, decode_metrics = self.continuous_batch(prefill_state, prev_state)

    return prev_state, prefill_metrics | decode_metrics

Those rollouts can then be processed, cleaned and de-tokenized whilst all the metrics are aggregated and shared to the multi-processed inference metrics queue.

def start(self, key: Array):
    ...

    while True:
        ...
        gather_metrics = self.gather_rollouts()

        self.prompt_id_offset += self.max_prefill_prompts

        metrics = (
            batch_metrics
            | gather_metrics
            | prompt_metrics
            | {"total_time": t.data["time"], "worker_id": self.global_worker_id}
        )
        self.async_options.queues.inference_metrics_queue.put(metrics)

Scaling Replicas

Now that the structure of a single inference worker is complete, the question arises of how devices can be split across the different workers. Since there is no communication between replicas, each replica can be assigned to a thread managing some set of the devices. In practice, this is represented as a single-replica/TP group, but it is currently kept to tp=1 so the set of devices is equal to 1. All of the methods written above can be encapsulated in the SingleInferenceReplica where the per-replica devices are used to initialize the single inference replica sharding.

class SingleInferenceReplica:
    def __init__(
        self,
        config: InferenceConfig,
        model: Model,
        async_state: AsyncState,
        async_options: AsyncOptions,
        worker_id: int,
        inference_rank: int,
        devices: np.ndarray,
        *,
        eval_group_size: int | None = None,
    ):
        self.devices = devices
        self.tp = devices.size

        self.mesh = jax.sharding.Mesh(devices, axis_names=(TP_AXIS,), axis_types=(jax.sharding.AxisType.Explicit,))
        self.sharding = jax.NamedSharding(self.mesh, P())

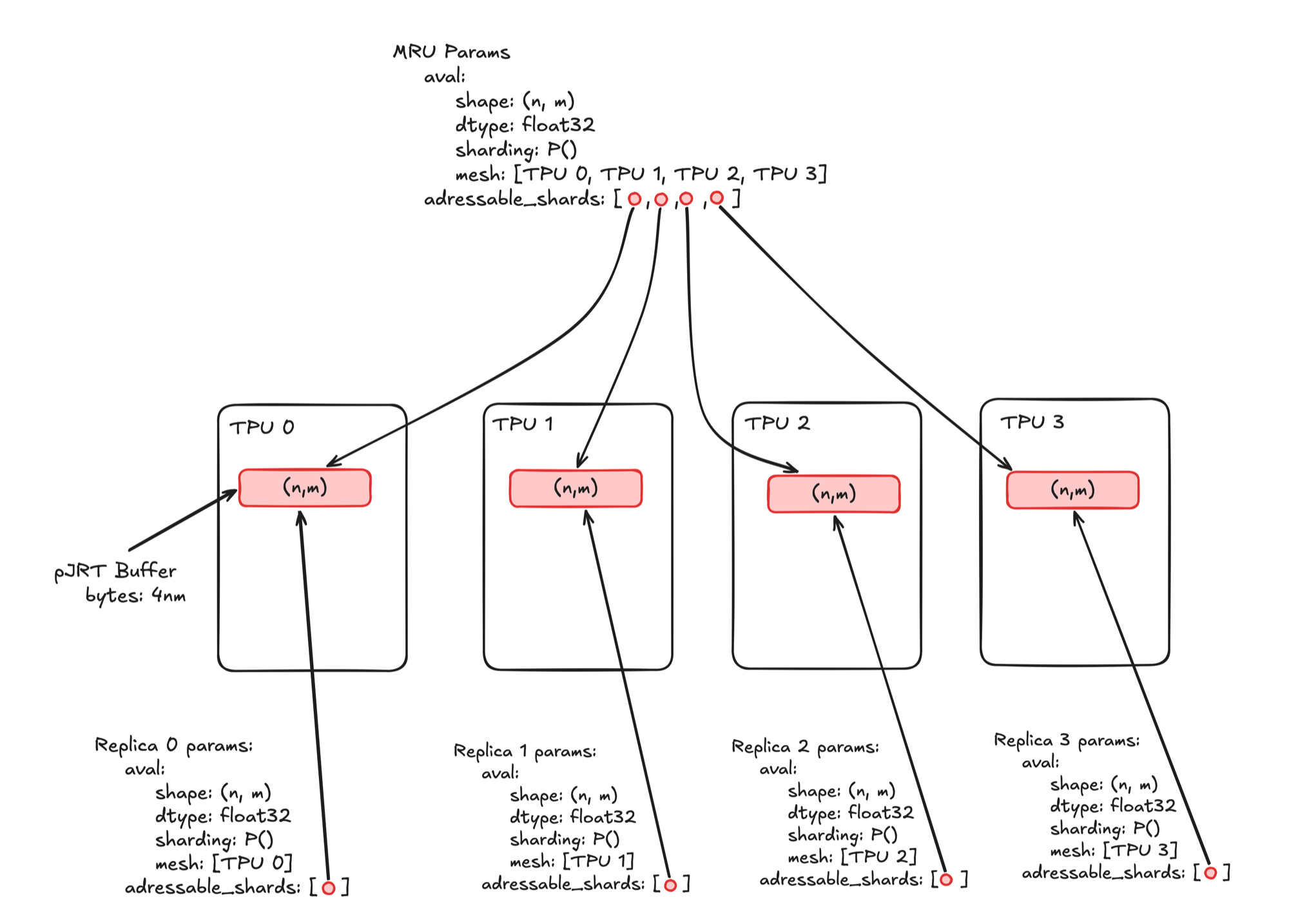

The AsyncInferenceWorker initialized on each host arranges its local devices into a grid based on the TP dim and instantiates them into a SingleInferenceReplica worker array.

class AsyncInferenceWorker(Worker):
    def __init__(self, trainer_config: TrainerConfig, async_options: AsyncOptions):
        ...
        device_groups = np.array(jax.local_devices()).reshape(-1, self.inference_config.tp)

        workers = [
            SingleInferenceReplica(
                self.inference_config,
                self.model,
                self.async_state,
                async_options,
                i,
                self.worker_rank,
                device_groups[i],
                eval_group_size=self.eval_config.group_size,
            )
            for i in range(device_groups.shape[0])
        ]

        self.thread_workers = [threading.Thread(target=w.start, args=(init_keys[i],)) for i, w in enumerate(workers)]

    ...

    def start(self):
        for t in self.thread_workers:
            t.start()
        for t in self.thread_workers:
            t.join()

Optional: Scaling Replicas with SPMD

The approach presented above makes individual replicas independent but a more JAX/SPMD version would have been to make a 2D mesh of (dp, tp) with the batch sharded across the dp axis. This approach was tested; however, in practice it led to several problems, one of which we describe below. With this sharding setup, the substitution logic from above still works since XLA inserts the correct collectives. However, naively doing this has a major flaw. When implemented, the memory would spike and the majority of the step time was in the sub_batch function. Looking at the trace, we can see the peak memory spikes in the decode step and the majority of the trace is spent on all-gathers.

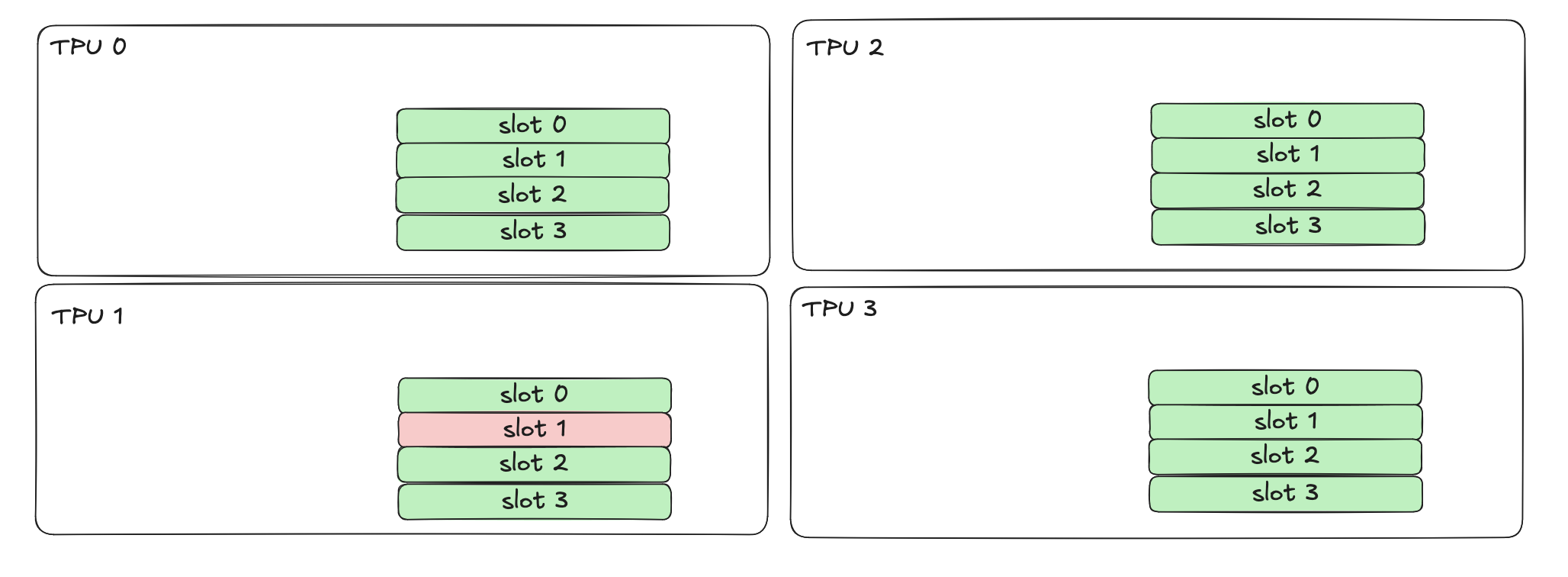

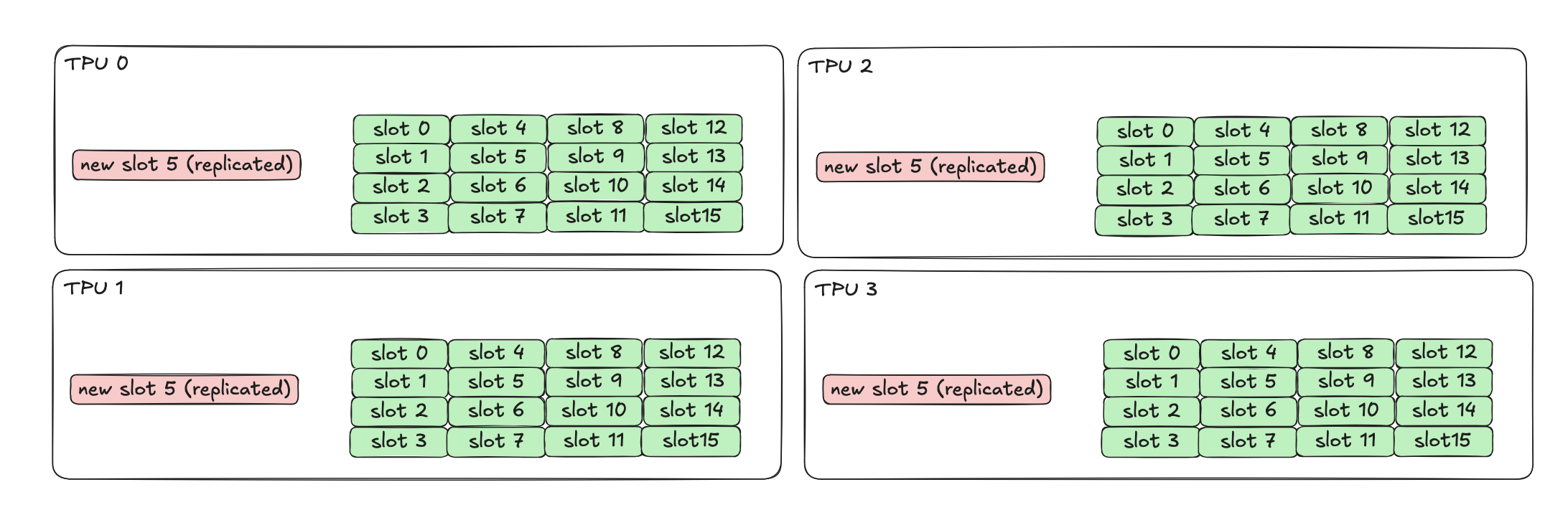

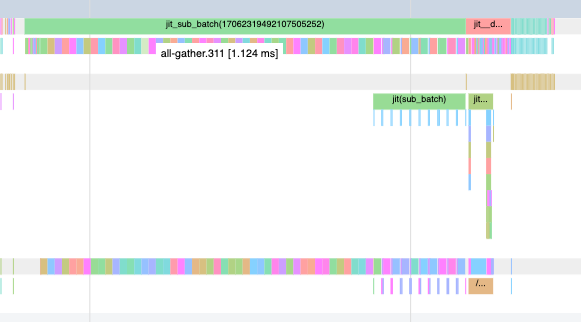

The reason this occurred is because the KV cache was being all-gathered, the substitution occurred on every device and the results were scattered back. This is visualized below in the case of a batch of 16 in-flight sequences sharded across 4 devices.

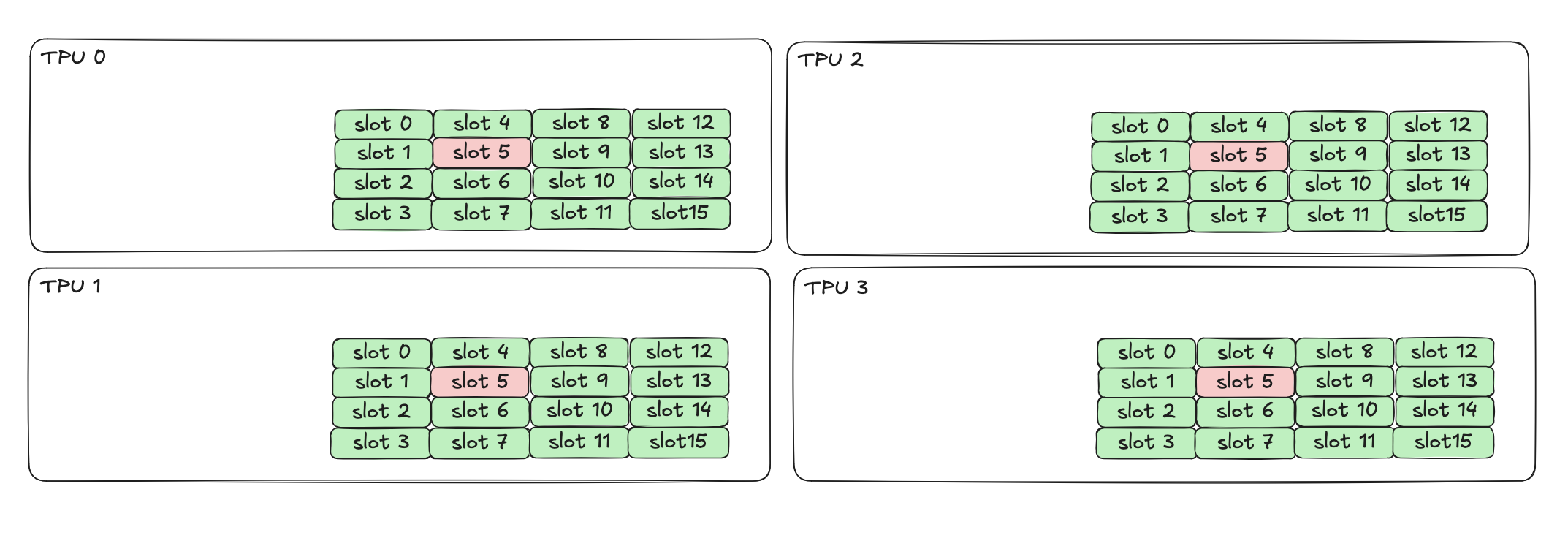

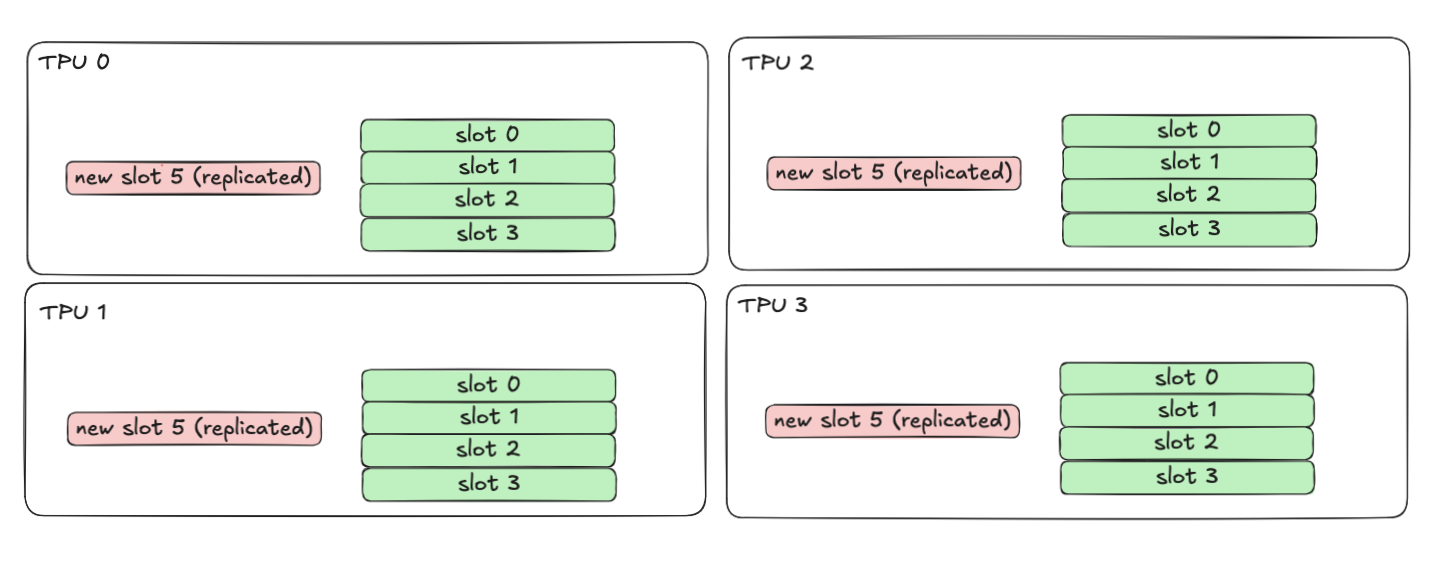

Using JAX's manual sharding mode, we can replace this using a simple shard_map function that only replaces the index on the device where it lives.

@partial(
    jax.shard_map,
    mesh=self.shardings.mesh,
    in_specs=(
        jax.tree.map(lambda x: x.spec, self.shardings.state_sharding),
        jax.tree.map(lambda x: P(), self.shardings.state_sharding),
        P(),
    ),
    out_specs=(jax.tree.map(lambda x: x.spec, self.shardings.state_sharding)),
)
def _sub(old_state: InferenceState, new_state: InferenceState, index: Array) -> InferenceState:
    B_local = old_state.next_token.shape[0]
    device_id = jax.lax.axis_index(AXIS_NAME)

    start_idx = B_local * device_id
    end_idx = B_local * (device_id + 1)

    local_idx = index - start_idx

    sub_on_this_device = (index >= start_idx) & (index < end_idx)

    old_state = jax.lax.cond(
        sub_on_this_device[0], lambda o, n, i: o.sub(n, i), lambda o, _n, _i: o, old_state, new_state, local_idx
    )

    return old_state

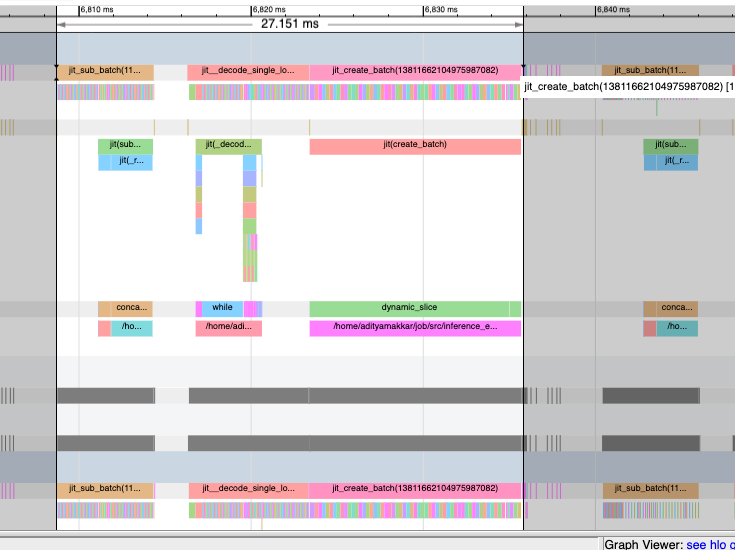

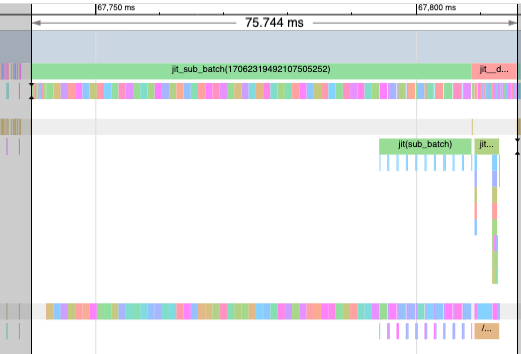

The step time drops from roughly ~75ms to 27ms when debugging - an interesting case showcasing the compiler is not always right!

Trainer

Train Loop

The core training loop is relatively simple: rollouts are fetched and converted into RL batches, a training step is performed and the weights are then synchronized. Below, we describe each of these steps in more detail.

class AsyncTrainWorker(Worker):
    ...

    def train(self):
        ...
        self.log_info(f"Starting training loop at step {self.global_step}")
        while self.global_step < self.total_steps:

            with stax.Tracker(timer=True) as t:
                generations, local_rollout_metrics = self.get_rollouts()

                local_train_batch, local_train_batch_metrics = self.train_dataset.prepare_batch(generations, train=True)

                self.params, self.opt_state, train_metrics = self.train_step(
                    self.params, self.opt_state, local_train_batch, teacher_params=self.teacher_params
                )
                weight_sync_time = self.train_sync_weights()

            metrics = (
                train_metrics
                | metrics_all_reduce(local_train_batch_metrics, self.async_options.train_mesh)
                | metrics_all_reduce(local_rollout_metrics, self.async_options.train_mesh)
            )

            ...
            # checkpointing / logging code here
            ...

        self.log_info("Training complete.")

    def start(self):
        try:
            self.train()
        finally:
            self.finish()

Samples

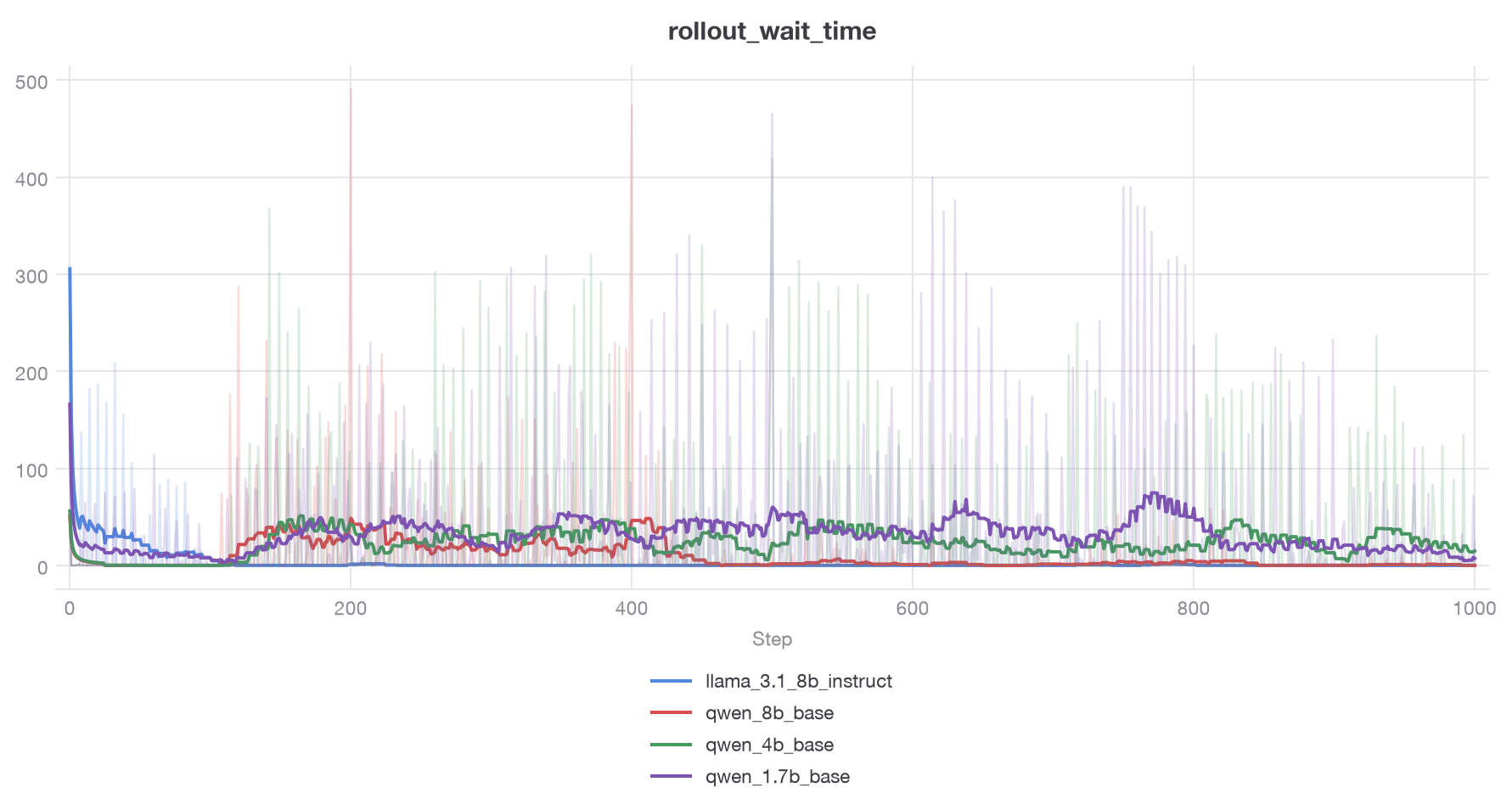

get_rollouts is a blocking function that waits for enough rollouts on each device. If the train batch size is $B = PG$, then each host needs to collect $P / \text{num hosts}$ rollouts (each rollout object has $G$ rollouts attached). Filtering and weight control is also implemented here. If the earliest weight iteration for any of the group rollouts is more than the specified lag, it is thrown out. Similarly, it is common to do zero-variance filtering, introduced in DAPO, to ensure advantages are non-zero [12].

class AsyncTrainWorker(Worker):
    ...

    def get_rollouts(self) -> tuple[list[InferenceRollout], dict]:
        rollouts = []
        weight_iterations = []
        num_filtered_rollouts = 0

        with stax.Tracker(timer=True) as t:
            while len(rollouts) < self.train_n_prompts_per_host:
                rollout: InferenceRollout = self.async_options.queues.rollout_queue.get(timeout=TIMEOUT)

                if num_filtered_rollouts > 0 and num_filtered_rollouts % 10 == 0:
                    logger.warning(
                        f"Filtered {num_filtered_rollouts} rollouts due to lag or zero variance, consider increasing max_lag or disabling zero variance filtering if this is happening frequently.",
                        log_for_all=True,
                    )

                if (lag_diff := (self.weight_iteration - rollout.lag)) > self.config.async_config.max_lag:
                    num_filtered_rollouts += 1
                    continue

                if self.config.loss_config.filter_zero_variance and self.train_dataset.check_rollout_zero_variance(
                    rollout
                ):
                    num_filtered_rollouts += 1
                    continue

                rollouts.append(rollout)
                weight_iterations.append(lag_diff)

        metrics = {
            "train/rollout_queue_wait_time": t.data["time"],
            "train/max_off_policy": max(weight_iterations),
            "train/min_off_policy": min(weight_iterations),
            "train/mean_off_policy": sum(weight_iterations) / len(weight_iterations),
            "train/num_filtered_rollouts": num_filtered_rollouts,
        }

        return rollouts, metrics

Our train dataset can then run a verifier over the rollouts and return back a simple RLBatch object.

@struct.dataclass
class RLBatch:
    tokens: jax.Array  # [B, max_seq_len] where B = P * G, P = num prompts, G = group size
    # logprobs from sampler
    reference_model_logprobs: jax.Array  # [B, max_seq_len] logprobs of sampled token
    seq_lens: jax.Array  # [B] length of sequences (excluding padding)
    rewards: jax.Array  # [B] reward of each sequence
    group_mean: jax.Array  # [B] mean reward for sequence's group
    group_std: jax.Array  # [B] std of reward for sequence's group
    token_mask: jax.Array  # [B, T] mask for applying rl

Shardings

Before moving to the train step, we describe our sharding framework. The sharding config can be specified as seen below with 3 axis sharding: DP, FSDP and CP Ulysses.

@dataclass
class MeshConfig:
    dp: int = 1
    fsdp: int = -1
    cp_ulysses: int = 1

@dataclass
class ShardingConfig:
    params_shape: PyTree[jax.ShapeDtypeStruct]
    opt_state_shape: PyTree[jax.ShapeDtypeStruct]

    mesh_config: MeshConfig

    opt_state_offload: bool = False
    # dp options
    data_shard_dim: int = 0
    # fsdp options
    min_bytes_for_fsdp: int = int(1e7)  # 1e7/(1024*1024) \approx 10MB
    weight_shard_dim: int = 0
    # cp options
    cp_shard_dim: int = 0

Then the Shardings class encompasses the shardings for the different components required in the trainer.

@dataclass
class Shardings:
    param_sharding: PyTree[NamedSharding]
    opt_state_sharding: PyTree[NamedSharding]
    metrics_sharding: NamedSharding
    shard_data: Callable[[PyTree], PyTree]
    mesh: jax.sharding.Mesh

Before the shardings are applied on any of the data, the SPMD train mesh needs to be set up by taking in a mesh config alongside the devices to shard over and returns the corresponding mesh.

def setup_mesh(mesh_config: MeshConfig, devices: np.ndarray | None = None):
    if not jax.distributed.is_initialized():
        raise ValueError("jax distributed has not been initialized")

    if devices is None:
        devices = np.array(jax.devices())
    n_devices = np.prod(devices.shape)

    axis_sizes = (mesh_config.dp, mesh_config.fsdp, mesh_config.cp_ulysses)

    axis_type = (jax.sharding.AxisType.Auto, jax.sharding.AxisType.Auto, jax.sharding.AxisType.Auto)
    axis_sizes = resolve_axis_sizes(axis_sizes, n_devices)
    axis_names = AXIS_NAMES_ENUM.full_mesh()

    try:
        mesh = jax.make_mesh(axis_sizes, axis_names, axis_type, devices=list(devices))
    except Exception as _:
        # if jax cannot create optimal mesh layout, make a manual mesh
        logger.warning("Failed to create mesh with make_mesh, falling back to `jax.sharding.Mesh`")
        mesh = Mesh(devices, axis_names, axis_type)

    jax.set_mesh(mesh)
    logger.info(f"setup mesh : {mesh}")
    logger.info("Set `xla_tpu_enable_latency_hiding_scheduler=false` for better comms-compute overlap")
    return mesh

Then, the main function get_sharding(...) takes in a mesh alongside a sharding config and returns the Shardings object. The shard_param function takes in a param and determines if it should be sharded over the FSDP dim. If it is a 1D param (e.g. bias) or its byte size is less than the config.min_bytes_for_fsdp (to avoid hop latencies on TPUs⁵), it will be replicated. Otherwise the weight_shard_dim is sharded across the FSDP axis. This function can then be applied to the param sharding and the optimizer state shardings, whilst the metrics sharding will always be replicated.

def get_sharding(mesh: Mesh, config: ShardingConfig) -> Shardings:
    """Adapted from https://github.com/kvfrans/jaxtransformer"""
    assert len(mesh.axis_names) == 3, "mesh should have three axes: dp, fsdp, cp"

    replicate_sharding = NamedSharding(mesh, P())

    def shard_param(param):
        if param.ndim < 2 or jnp.dtype(param.dtype).itemsize * param.size < config.min_bytes_for_fsdp:
            shard = replicate_sharding
        else:
            param_tuple = [None for _ in range(config.weight_shard_dim)] + [AXIS_NAMES_ENUM.FSDP.value]
            shard = NamedSharding(mesh, P(*(param_tuple)))
        return shard

    param_sharding = jax.tree.map(shard_param, config.params_shape)
    opt_state_sharding = jax.tree.map(shard_param, config.opt_state_shape)
    metrics_sharding = replicate_sharding

    def shard_data(batch: PyTree) -> PyTree:
        ...

    if config.opt_state_offload:
        opt_state_sharding = jax.tree.map(lambda x: x.with_memory_kind("pinned_host"), opt_state_sharding)

    return Shardings(param_sharding, opt_state_sharding, metrics_sharding, shard_data, mesh)

The shard data function is returned as the method that can map over our batch structure. It uses a tree.map(...) on the put_batch_fn for each individual array in the PyTree. A single dimensional array is sharded on the 0^th axis across the DP sub mesh (DP + FSDP), otherwise the axis placements are resolved according to the config. Next, the global sharding needs to be created for the NumPy array x that is coming in across hosts. Since this will be sharded along the batch axis, the mesh devices are flattened into one 1D submesh which is passed into the jax.make_array_from_process_local_data(...) and returns the global array. The global array is then resharded with the desired target sharding.

def shard_data(batch: PyTree) -> PyTree:
    def put_batch_fn(x: Array):
        if is_key(x):
            return jax.device_put(x, replicate_sharding)

        data_tuple = [None for _ in range(x.ndim)]
        if x.ndim == 1:
            data_tuple[0] = (AXIS_NAMES_ENUM.DP.value, AXIS_NAMES_ENUM.FSDP.value)
        else:
            if config.cp_shard_dim == config.data_shard_dim:
                data_tuple[config.data_shard_dim] = (
                    AXIS_NAMES_ENUM.DP.value,
                    AXIS_NAMES_ENUM.FSDP.value,
                    AXIS_NAMES_ENUM.CP_ULYSSES.value,
                )
            else:
                data_tuple[config.data_shard_dim] = (AXIS_NAMES_ENUM.DP.value, AXIS_NAMES_ENUM.FSDP.value)
                data_tuple[config.cp_shard_dim] = AXIS_NAMES_ENUM.CP_ULYSSES.value

        target_data_sharding = NamedSharding(mesh, P(*data_tuple))
        global_sharding = [None] * config.data_shard_dim + [
            (AXIS_NAMES_ENUM.DP.value, AXIS_NAMES_ENUM.FSDP.value, AXIS_NAMES_ENUM.CP_ULYSSES.value)
        ]
        global_data_sharding = NamedSharding(mesh, P(*global_sharding))

        num_hosts = mesh.devices.size // jax.local_device_count()
        global_x_shape = (
            *x.shape[: config.data_shard_dim],
            x.shape[config.data_shard_dim] * num_hosts,
            *x.shape[config.data_shard_dim + 1 :],
        )

        global_x = jax.make_array_from_process_local_data(global_data_sharding, x, global_x_shape)
        target_x = jax.device_put(global_x, target_data_sharding)
        return target_x

    return jax.tree.map(put_batch_fn, batch)

To perform the shardings over the train function, the general wrapper get_steps_fn sets up the mesh and shardings through the methods above. Those shardings create a train_shardings dict which are applied as the out shardings for the train function. The train and val functions are standard gradient accumulation forward passes and the backwards loop is omitted for brevity.

def get_steps_fn(
    step_fn: StepFn,
    model: modelBase,
    tx: optax.GradientTransformation,
    sharding: ShardingConfig,
    has_aux: bool = True,
    grad_steps: int = 1,
    reduce_fn: Callable[[int | Array, Batch], int | Array] = lambda s, b: s + 1,
    val_steps: int = 1,
    devices: Optional[np.ndarray] = None,
    **jit_kwargs,
) -> Tuple[TrainFn, ValFn, Shardings]:
    single_step = partial(step_fn, model)

    mesh = setup_mesh(sharding.mesh_config, devices=devices)

    shardings = get_sharding(mesh, sharding)
    train_shardings = {
        "metrics": shardings.metrics_sharding,
        "params": shardings.param_sharding,
        "opt_state": shardings.opt_state_sharding,
    }

    offload_opt_state_sharding = None
    if sharding.opt_state_offload:
        offload_opt_state_sharding = jax.tree.map(lambda x: x.with_memory_kind("device"), shardings.opt_state_sharding)

    @partial(jax.jit, out_shardings=train_shardings, **jit_kwargs)
    def train_fn(params: Params, opt_state: OptState, teacher_params, *batch: Batch) -> Dict[str, Any]:
        logger.info("compiling train step fn ...")
        with jax.named_scope("train_step"):
            out = train_step(
                single_step,
                tx,
                params,
                opt_state,
                batch,
                teacher_params=teacher_params,
                grad_steps=grad_steps,
                reduce_fn=reduce_fn,
                has_aux=has_aux,
                offload_opt_state=offload_opt_state_sharding,
            )
            out["metrics"] = {f"train/{k}": v for k, v in out["metrics"].items()}
            return out

    @partial(jax.jit, out_shardings=shardings.metrics_sharding, **jit_kwargs)
    def val_fn(params: Params, *batch: Batch) -> Metrics:
        logger.info("compiling val fn ...")
        with jax.named_scope("val_step"):
            val_metrics = val_step(
                single_step,
                params,
                batch,
                val_steps=val_steps,
                has_aux=has_aux,
            )
            val_metrics = {f"val/{k}": v for k, v in val_metrics.items()}
            return val_metrics

    return train_fn, val_fn, shardings  # type: ignore

Finally, the AsyncTrainWorker can call the function above and receive the sharded train function that can be called with the RL batch data.

self.train_fn, _val_fn, shardings = get_steps_fn(
    ...
    sharding=stax.ShardingConfig(
        params_shape=params_shape,
        opt_state_shape=opt_state_shape,
        mesh_config=stax.MeshConfig(
            dp=self.config.sharding_config.dp_group_size,
            fsdp=self.config.sharding_config.fsdp_group_size,
            cp_ulysses=self.config.sharding_config.cp_group_size,
        ),
        opt_state_offload=self.config.sharding_config.opt_state_offload,
        min_bytes_for_fsdp=self.config.sharding_config.min_bytes_for_fsdp,
        data_shard_dim=self.config.sharding_config.data_shard_dim,
        cp_shard_dim=self.config.sharding_config.cp_shard_dim,
        weight_shard_dim=self.config.sharding_config.weight_shard_dim,
    ),
)

The train step encompasses this whole sharding path into one function.

def train_step(
    self, params, opt_state, local_batch, teacher_params=None
) -> tuple[PyTree, PyTree, dict]:
    with stax.Tracker(timer=True) as t:
        global_batch = self.shard_data_fn(local_batch)
        global_train_batch = jax.tree.map(
            lambda x: rearrange(
                x,
                "(m g) ... -> g m ...",
                m=self.config.train_batch_size // self.config.grad_accum_steps,
                g=self.config.grad_accum_steps,
            ),  # [grad_accum_steps, minibatch_size, seq_len]
            global_batch,
        )

        out = self.train_fn(params, opt_state, global_train_batch, teacher_params=teacher_params)

        # we have to sync weights so might as well block to get true step time
        jax.tree.map(lambda x: x.block_until_ready(), out)

    metrics = out["metrics"] | {"train/learner_step_time": t.data["time"]}
    return out["params"], out["opt_state"], metrics

Loss Function

The final remaining component is the loss function. Since the get steps fn can take in any generic loss function, we give a simple example of the CISPO loss below [13].

$$ \mathcal{L}_{\mathrm{CISPO}}(\theta) = -\mathbb{E}\left[ \frac{1}{\sum_{g=1}^{G} |y_g|} \sum_{i=1}^{G} \sum_{t=1}^{|y_i|} \mathrm{sg}\left(\min(r_{i,t}(\theta), \epsilon_{\mathrm{high}})\right) \cdot \hat{A}_{i} \cdot \log \pi_\theta(a_{i,t} \mid s_{i,t}) \right] $$

Below is the implementation and it is assigned to the loss function above.

class CISPOLoss(LossFunction):
    name: str = "CISPO"

    def __init__(self, loss_config: LossConfig, epsilon: float = 1.0):
        super().__init__(loss_config)
        self.epsilon = epsilon

    def compute_advantage(self, batch: RLBatch, teacher_params: PyTree = None) -> Array:
        return batch.rewards - batch.group_mean

    def compute_loss(
        self, x_logprobs: Array, advantages: Array, batch: RLBatch, teacher_params: PyTree = None
    ) -> tuple[Array, dict[str, Array]]:
        ratio = jnp.exp(x_logprobs - batch.reference_model_logprobs)
        min_ratio = jax.lax.stop_gradient(jnp.minimum(ratio, self.epsilon))
        token_loss = jnp.sum(advantages[:, None] * min_ratio * x_logprobs * batch.token_mask)
        return token_loss, {}

    def __call__(
        self, model: Model, params: PyTree, batch: RLBatch, teacher_params=None, train: bool = True
    ) -> tuple[Array, PyTree]:
        x_logprobs = model.get_logprobs(params, batch.tokens, batch.seq_lens)

        batch = batch.replace(
            tokens=batch.tokens[:, 1:],
            reference_model_logprobs=batch.reference_model_logprobs[:, 1:],
            token_mask=batch.token_mask[:, 1:],
        )

        advantages = self.compute_advantage(batch)
        loss, aux_metrics = self.compute_loss(x_logprobs, advantages, batch, teacher_params)
        loss *= -1  # gradient descent

        ratio = jnp.exp(x_logprobs - batch.reference_model_logprobs)
        # metrics will be reduced by compute_normalization function
        aux_metrics |= {
            "loss": loss,

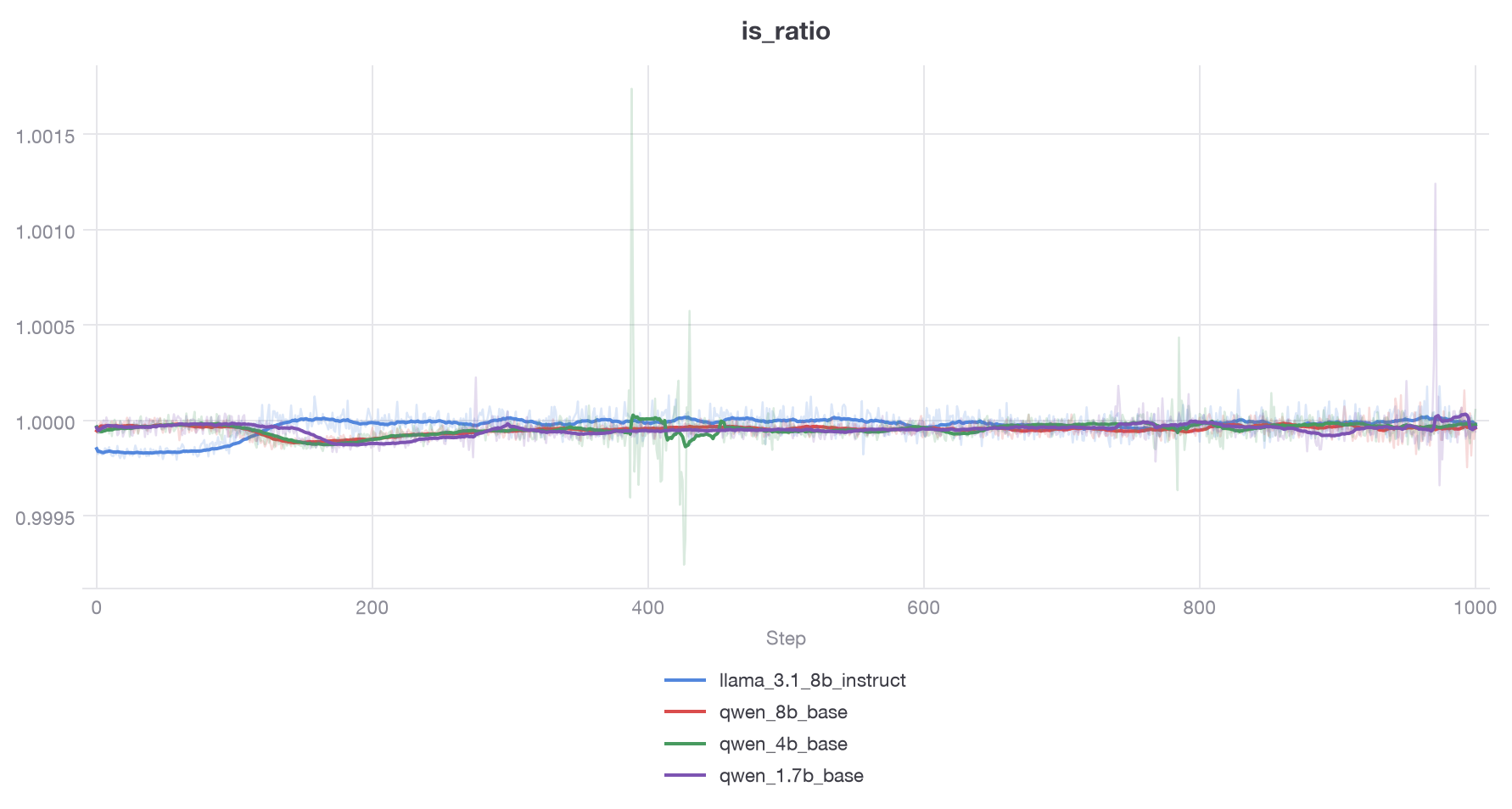

            "is_ratio": jnp.sum(ratio * batch.token_mask),
        }

        return loss, aux_metrics

    @property
    def compute_normalization(self) -> Callable[[int | Array, PyTree], int | Array]:
        return lambda denom, batch: denom + jnp.sum(batch.token_mask)

Memory Optimization

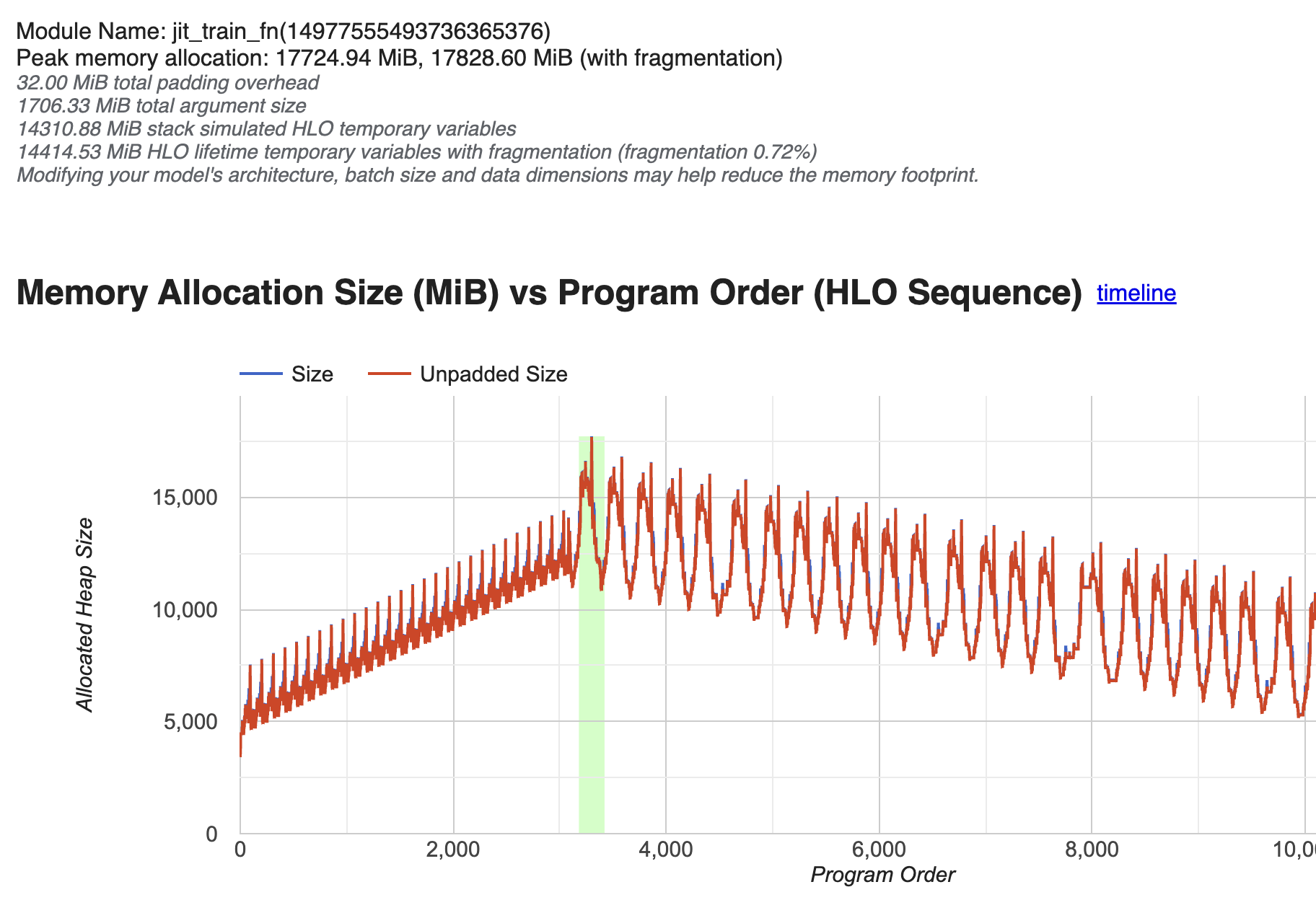

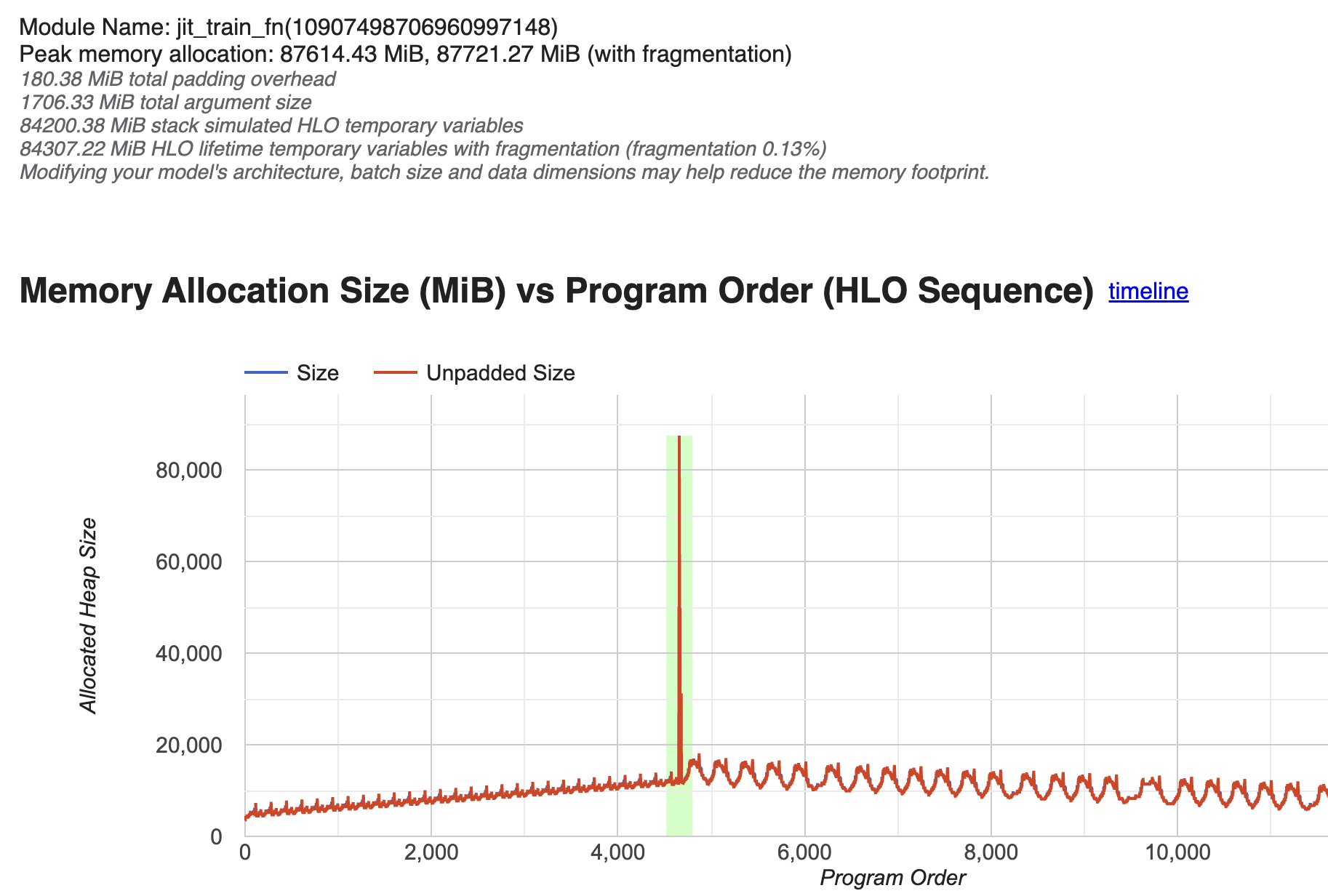

Obtaining the logprobs for the target output tokens in a naive manner materializes the vocab dim for every prompt and time step resulting in a memory bottleneck. For example, in most Qwen models $V = 151{,}936$, so if $B = 512$ and $T = 4096$, in bf16 that amounts to a spike of ~637 GB. Since only the correct target token is needed, this is an unnecessary amount of memory for a very sparse use case. This can be done with a separate model call that accounts for a special fused linear selection kernel which takes the final hidden state [B, T, D] with the lm_head [D, V] and returns the intended logits. A custom VJP can be written so that we have explicit control over the materialization in the backwards pass as well.

@functools.partial(jax.custom_vjp, nondiff_argnums=(3,))
def fused_linear_selection(h, W, targets, chunk_size=1024) -> Array:
    return _fwd(h, W, targets, chunk_size)[0]

The hidden inputs arrive as a [B * T, D] tensor with the 0^th dimension sharded over the whole mesh (DP, FSDP, CP_ULYSSES) and are reshaped into [num_chunks, chunk_size, D]. Since the scan loop uses the global shape, the sharding is transposed to the chunk_size dim using an all-to-all. Then, the gathered LM head is applied alongside softmax and the target logprobs are selected. The LM head is cast and applied in FP32 since this results in better stability [13].

def _fwd(h, W, targets, chunk_size):
    B, D = h.shape
    _, _V = W.shape
    chunk_size = min(chunk_size, B)

    num_chunks = make_chunks(B, chunk_size)
    chunked_hidden_inputs = jax.lax.with_sharding_constraint(
        h.reshape(num_chunks, chunk_size, D), P(None, (DP, FSDP, CP_ULYSSES), None)
    )  # num_chunks, chunk_size, D
    chunked_targets = jax.lax.with_sharding_constraint(
        targets.reshape(num_chunks, chunk_size), P(None, (DP, FSDP, CP_ULYSSES))
    )  # num_chunks, chunk_size

    W_gather = jax.lax.with_sharding_constraint(W, P())

    chunked_hidden_inputs, W_gather = jax.tree.map(lambda x: x.astype(jnp.float32), (chunked_hidden_inputs, W_gather))

    def body_fn(carry, chunk):
        hidden_chunk, target_chunk = chunk
        logits_chunked = hidden_chunk @ W_gather  # chunk_size x V
        log_softmax = jax.nn.log_softmax(logits_chunked, axis=-1)  # chunk_size x V
        target_log_probs = jnp.take_along_axis(log_softmax, target_chunk[:, None], axis=-1)[:, 0]  # chunk_size

        return carry, target_log_probs

    _, chunked_output = jax.lax.scan(body_fn, None, (chunked_hidden_inputs, chunked_targets))  # num_chunks x chunk_size
    output = chunked_output.reshape(B)  # (B,)
    return output, (chunked_hidden_inputs, W_gather, chunked_targets)

The chunk logits are produced by $z_k = h_k W$, where $h_k \in \mathbb{R}^{C \times D}$, $W \in \mathbb{R}^{D \times V}$ and $z_k \in \mathbb{R}^{C \times V}$, with $C$ the chunk size, $D$ the hidden dimension and $V$ the vocab dim. With the custom VJP, we want the gradient of the loss with respect to the hidden states and LM head, $\frac{\partial L}{\partial h}$ and $\frac{\partial L}{\partial W}$. We use the notation $\partial x = \frac{\partial L}{\partial x}$. For every token $i$, the fused forward returns the log-softmax of the logits, $\ell_i = \log \text{softmax}(z_i)_{y_i} \in \mathbb{R}$. Since the cotangents $\partial \ell_i$ are given,

$$ \frac{\partial L}{\partial z_{i,j}} = \partial\ell_i \left( \mathbf{1}[j = y_i] - \frac{e^{z_{i,j}}}{\sum_{k=1}^{V} e^{z_{i,k}}} \right) $$

The local gradients can be propagated such that $\partial h_k$ is chunk-local and $\partial W$ accumulates across chunks.

$$ \partial h_k = \partial z_k W^{\top}, \qquad \partial W = \sum_{k} h_k^{\top} \partial z_k $$

From an implementation standpoint, the non-diff argument (in this case the chunk size), the residuals and the cotangents are passed into the backwards call. Similar to the forwards pass, the cotangents are reshaped and resharded (we save the chunked inputs, hence no need to repeat comms). During the backwards pass, the scan loop carries the hidden chunk, target chunk and cotangent chunk to compute the softmax. The final sharding to return to the original shardings of the inputs is handled by XLA.

def _bwd(chunk_size, residuals, dy):
    chunked_hidden_inputs, W_gather, chunked_targets = residuals
    num_chunks, chunk_size, D = chunked_hidden_inputs.shape
    _, V = W_gather.shape

    chunked_dy = jax.lax.with_sharding_constraint(
        dy.astype(jnp.float32).reshape(num_chunks, chunk_size), P(None, (DP, FSDP, CP_ULYSSES))
    )

    def body(dW, chunk):
        hidden_chunk, target_chunk, dy_chunk = chunk
        logits_chunked = hidden_chunk @ W_gather  # chunk_size x V

        p = jax.nn.softmax(logits_chunked, axis=-1)  # chunk_size x V
        onehot = jax.nn.one_hot(target_chunk, V, dtype=p.dtype)
        dz = dy_chunk[:, None] * (onehot - p)  # chunk_size x V

        dh_chunk = dz @ W_gather.T  # chunk_size x D
        dW = dW + hidden_chunk.T @ dz  # D x V
        return dW, dh_chunk

    dW, chunked_dh = jax.lax.scan(
        body,
        jnp.zeros_like(W_gather, dtype=jnp.float32),
        (chunked_hidden_inputs, chunked_targets, chunked_dy),
    )

    dh = chunked_dh.reshape(-1, D)  # (B, D)
    d_targets = jnp.zeros((num_chunks * chunk_size), jax.dtypes.float0)
    return dh, dW, d_targets

fused_linear_selection.defvjp(_fwd, _bwd)

Weight Sync

Weight sync is the last part that connects the trainer back to the inference worker. In this case, our hosts are running separate programs, so a simple jax.device_put(...) will not work. JAX experimental ships with a transfer server supporting a push/pull API. A server can push some arrays waiting for a receiving client to pull the array off; however, this uses the DCN network which is not ideal considering we have TPUs on the same mesh.

Instead, we can write our own transfer server which will use cross-host device-puts to leverage the ICI connections. Since device-put requires the number of input and output devices to match, the server ensures that the number of train workers is a denominator of the total ranks and then will perform n_hosts // train_workers hops to transfer between hosts. For each hop, a mesh is created with the devices for the hop region.

def create_mesh(devices: np.ndarray) -> jax.sharding.Mesh:
    assert devices.ndim == 1, "devices must be a 1-dimensional array"
    return jax.make_mesh(
        axis_shapes=(devices.size,), axis_names=("devices",), axis_types=(EXPLICIT,), devices=tuple(devices)
    )

class RDMATransferServer:
    def __init__(self, train_workers: int):
        assert 1 <= train_workers <= self.max_rank, f"expected 1 <= train_workers <= {self.max_rank}"
        assert self.max_rank % train_workers == 0, (
            f"expected train workers to divide total workers, got {self.max_rank} and {train_workers}"
        )

        self.train_workers = train_workers
        self.n_slots = self.max_rank // train_workers
        self.slot_size = train_workers * jax.local_device_count()

        devices = np.array(jax.devices())
        self.meshes = [create_mesh(devices[j * self.slot_size : (j + 1) * self.slot_size]) for j in range(self.n_slots)]

    @cached_property
    def max_rank(self) -> int:
        return jax.process_count()

    @cached_property
    def rank(self) -> int:
        return jax.process_index()

    @cached_property
    def slot(self) -> int:
        return self.rank // self.train_workers

To write the transfer method, we first keep a PyTree on all hosts with the same shape and dtype (inference workers can still randomly initialize weights of the model). The 0^th slot (which is a train worker) will transfer the tree to the 1D sharding. Then, the meshes are zipped one off to transfer between each other. An empty buffer description is made using the single-device API by passing an empty list of array references. If the slot is on the receiving mesh, it saves the tree as the output since it receives the materialized arrays. Even though this is linear in the number of hops (compared to a tree reduction which is $\log_2 n$), since the device put API is asynchronous, all operations are enqueued and pipelined. Hence afterwards, each host blocks and returns an identical materialized PyTree.

def allocate_buffer(shapes: PyTree, sharding: jax.NamedSharding):
    return jax.tree.map(
        lambda s: jax.make_array_from_single_device_arrays(s.shape, sharding=sharding, arrays=[], dtype=s.dtype), shapes
    )

def get_default_sharding(mesh: jax.sharding.Mesh) -> jax.NamedSharding:
    return jax.NamedSharding(mesh, jax.P())

class RDMATransferServer:
    ...

    def transfer(self, tree: PyTree) -> PyTree:
        mh.sync_global_devices("rdma_transfer_start")
        shapes = jax.tree.map(lambda leaf: jax.ShapeDtypeStruct(leaf.shape, leaf.dtype), tree)
        shardings = list(map(get_default_sharding, self.meshes))

        if self.slot == 0:
            tree = jax.device_put(tree, shardings[0])

        for i, (src, dest) in enumerate(itertools.pairwise(shardings)):
            buffer = tree if self.slot == i else allocate_buffer(shapes, src)
            out = jax.device_put(buffer, dest)
            if self.slot == i + 1:
                tree = out

        tree = jax.tree.map(lambda x: x.block_until_ready(), tree)
        mh.sync_global_devices("rdma_transfer_end")
        return tree

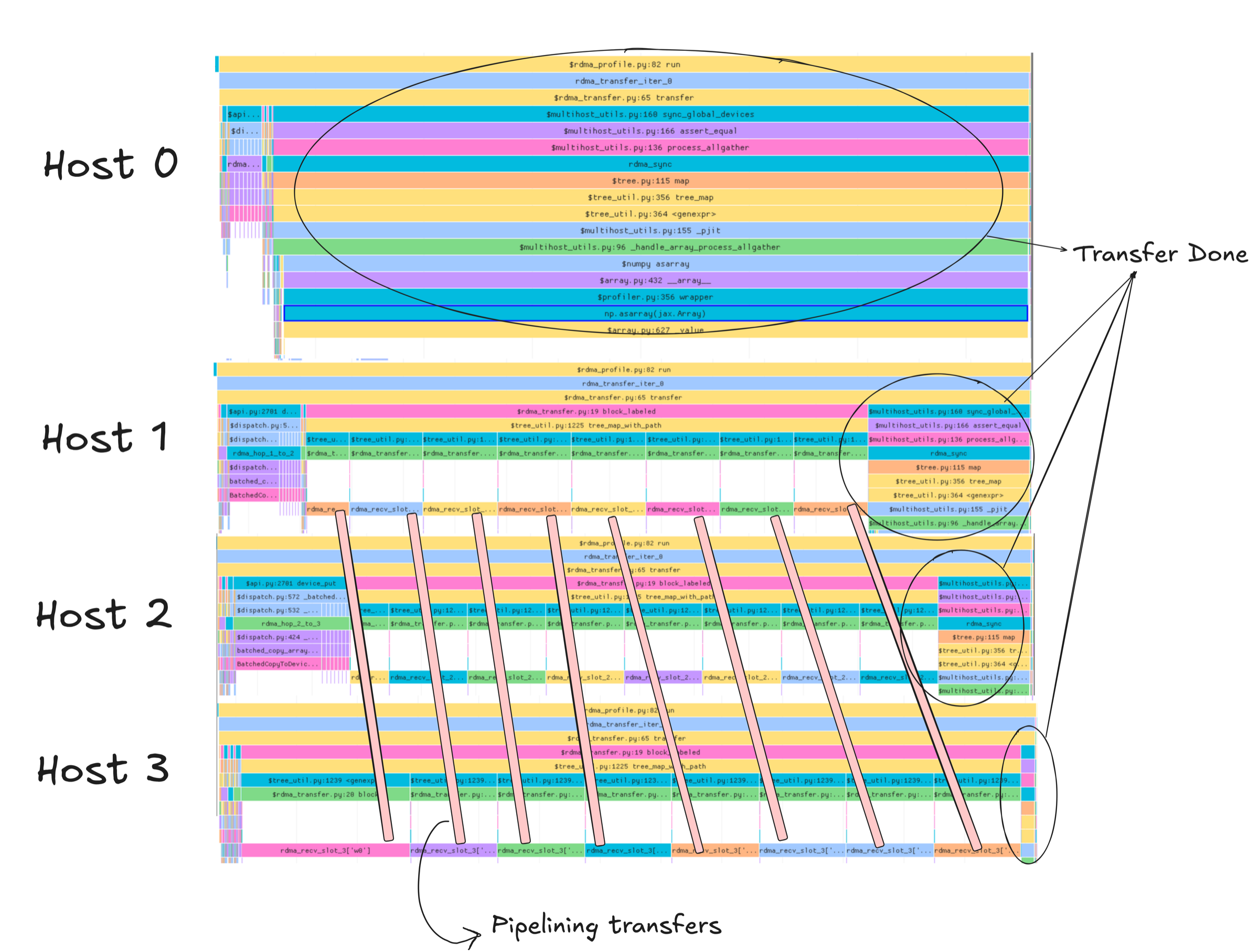

The key point to note is that the benefit of the pipelining is seen with more leaves in the PyTree since more sends can be overlapped. This can be observed on a trace based on the blocking of each host.

In the trainer, the weight sync queue is first used as a barrier (since JAX multi-host barrier syncs have a timeout). The weights are cast before sending and then the rdma_server transfer API is used.

class AsyncTrainWorker(Worker):
    ...

    def _init_state(self):
        self.rdma_server = RDMATransferServer(train_workers=self.config.async_config.train_workers)

    def train_sync_weights(self):
        assert self.train_mesh is not None, "Train mesh must be set up to sync weights."

        with stax.Tracker(timer=True) as t:
            params_cast = jax.tree.map(
                lambda p: p.astype(self.config.loss_config.inference_config.params_dtype), self.params
            )
            if self.worker_rank == 0:
                for _ in range(self.async_options.inference_workers):
                    self.async_options.queues.weight_sync_queue.put("sync")

            _ = self.rdma_server.transfer({"params": params_cast})

            del params_cast

        self.weight_iteration += 1
        self.log_info(f"[weight_sync] Weights sent to inference worker in {t.data['time']:.2f} seconds")
        return {"train/weight_sync_time": t.data["time"]}

Receiving the transferred weights is a bit more tricky since each thread is enqueuing its own operations and there needs to be a head to coordinate the transfer. For this, the AsyncInferenceWorker, alongside launching each replica, will keep a background check that checks for the weight transfer.

class AsyncInferenceWorker(Worker):
    def __init__(self, trainer_config: TrainerConfig, async_options: AsyncOptions):
        ...

        self.transfer_server = RDMATransferServer(train_workers=self.async_options.train_workers)
        self.monitor_thread = threading.Thread(
            target=self.monitor_weight_sync, args=(self.async_state, self.async_options), daemon=True
        )
        self.monitor_thread.start()
        ...

    def monitor_weight_sync(self, async_state: AsyncState, async_options: AsyncOptions):
        while True:
            # blocks until the train worker puts a message
            _ = async_options.queues.weight_sync_queue.get()

            logger.info(
                f"[weight_sync] Rank {jax.process_index()} received sync signal from train worker, syncing weights to latest parameters...",
                log_for_all=True,
            )

            ...

To start, a default strategy is to keep one set of params for each async inference worker and instantiate each of its replicas with a reference to that copy. Then the inference worker's params can be updated with the transfer server and whenever each replica is finished decoding, it can independently update its local copy with the synced params from the reference. However, this leads to problems with scaling model size as it requires doubling the amount of memory than what is required. A separate solution involves gating the weight sync until all threads have finished decoding a sequence. Then, each thread can create a separate JAX array referencing the same underlying PJRT buffer of the sharded weights resulting in no additional movement of the weights. This approach is described below.

A function called maybe_update_params is added to each worker.

class SingleInferenceReplica:
    ...

    def _maybe_update_params(self):
        ...

Inside the monitor weight sync, first the signal from the trainer is popped. A threading condition can be used to count the number of ready workers, which is set to 0 at the start of the sync. Then an event can be set to indicate to the replicas that a weight sync will occur. The replicas will then increment the condition count and the main thread is blocked until the number of workers ready is equal to the number of replicas.

On the replica side, after the event is cleared, the lock can be used to read the newly updated params. Each replica indexes the shards for the devices in its sharding to create a JAX array with its own abstract value (aval), but references the same underlying PJRT buffer from the main thread to avoid the local copy.

Once the local weights reference is updated, the worker can return to the decode loop. Since the decode loop stopped with an in-flight batch, the rest of the batch continues to roll out with the new weights. Although in theory the previous KV cache is from a different model, in practice this does not seem to make a difference [2, 15].

class SingleInferenceReplica:
    ...

    def continuous_batch(
        self, prefill_prompts: InferenceState, state: InferenceState | None
    ) -> tuple[InferenceState, dict[str, float]]:
        ...
        with Tracker(timer=True) as t:
            ...
            while len(prompt_queue) > 0:
                ...
                self._maybe_update_params()

        ...
        return state, decode_metrics

    def _maybe_update_params(self):
        # check if weight sync event has been triggered
        if not self.async_state.weight_sync_event.is_set():
            return

        # tell main thread this replica is ready
        with self.async_state.n_workers_condition:
            self.async_state.n_workers_ready += 1
            self.async_state.n_workers_condition.notify_all()

        # wait for transfer to be received, params updated and event is cleared
        while self.async_state.weight_sync_event.is_set():
            time.sleep(0.1)

        # read the weights and make a new reference to the same buffer
        with self.async_state.read_write_lock:
            assert self.weight_iteration < self.async_state.weight_iteration, (
                "expected new weight iteration to be greater than current weight iteration"
            )
            self.params = jax.tree.map(
                lambda x: jax.make_array_from_single_device_arrays(
                    x.shape,
                    self.sharding,
                    arrays=[s.data for s in x.addressable_shards if s.device in self.devices],
                    dtype=x.dtype,
                ),
                self.async_state.MRUparams,
            )
            self.weight_iteration = self.async_state.weight_iteration

        logger.info(f"Params updated on inference worker {self.global_worker_id}", log_for_all=True)


class AsyncInferenceWorker(Worker):
    ...

    def monitor_weight_sync(self, async_state: AsyncState, async_options: AsyncOptions):
        while True:
            # receive signal from train worker
            _ = async_options.queues.weight_sync_queue.get()

            logger.info(
                f"[weight_sync] Rank {jax.process_index()} received sync signal from train worker, syncing weights to latest parameters...",
                log_for_all=True,
            )

            # zero out ready workers
            # trigger event
            # wait for workers to say they're ready
            with async_state.n_workers_condition:
                async_state.n_workers_ready = 0
                async_state.weight_sync_event.set()
                async_state.n_workers_condition.wait_for(lambda: async_state.n_workers_ready >= self.n_replicas, timeout=60)
                if async_state.n_workers_ready < self.n_replicas:
                    logger.warning(f"Got {async_state.n_workers_ready} signals, expected {self.n_replicas}")

            # delete old weights to free memory
            # update MRU params with transfer server API
            # increment weight iteration
            shapes = jax.tree.map(lambda x: jax.ShapeDtypeStruct(x.shape, x.dtype), async_state.MRUparams)
            with async_state.read_write_lock:
                jax.tree.map(lambda x: x.delete(), async_state.MRUparams)
                async_state.MRUparams = self.transfer_server.transfer(shapes)
                async_state.weight_iteration += 1

            async_state.weight_sync_event.clear()

Roofline Analysis

A quick roofline analysis can be used to determine how to optimally partition the train and inference workers. Let $A$ be the total chips and $X$ be the number of chips that are used for training. Assuming the token batch size will be greater than 2550⁷ and only FSDP is used, the train step time can then be assumed to be compute bound. Hence

$$ T_{\text{train}} = \frac{6BTP}{XC} $$

where $B$ is batch size, $T$ is sequence length, $P$ is number of parameters and $C$ is the compute throughput of the chip. For inference, the majority of the time is spent in the decode step so prefill can be ignored. For decode, the per single-decode step time is memory bound so the inference step time can be modelled as

$$ T_{\text{inference step time}} = \frac{B_d T K + 2P}{M} $$

where $B_d$ is equal to the in-flight batch size and $K$ is the KV cache size per token. Then assuming the sequence rolls out to a $\lambda$ fraction of the total sequence length, the step time for an in-flight batch is

$$ T_{\text{inference batch time}} = \lambda T \cdot T_{\text{inference step time}} $$

For one batch of completions, this will be repeated $\frac{B}{B_d(A-X)}$ times since each inference device rolls out in parallel. Taking this into account, the total inference time is

$$ T_{\text{inference}} = \frac{\lambda T \cdot T_{\text{inference step time}} \cdot B}{B_d(A-X)} $$

Since the trainer shouldn't be stalling on a batch, the condition $T_\text{inference} \le T_{\text{train}}$ should be satisfied. Similarly, we can reason $T_{\text{inference}} \ge T_{\text{train}}$ as if the inference is faster than the trainer then at some point samples will have to be filtered out. This implies the condition $T_{\text{train}} = T_{\text{inference}}$. If we set $\alpha = \frac{6BTP}{C}$ which is the total train time across all chips and $\beta = \frac{\lambda BT(KB_dT+2P)}{MB_d}$ is the total decode time across all chips then let

$$ r = \frac{\beta}{\alpha} = \frac{\lambda C}{M} \cdot \frac{K B_d T + 2P}{6 P B_d} = \frac{\lambda C}{6M} \left( \frac{K T}{P} + \frac{2}{B_d} \right). $$

Solving for $\frac{X}{A}$, which is the percentage of chips used for training, yields

$$ \frac{X}{A} = \frac{1}{1+r} $$

We can plug this in to estimate for Llama 8B, 4096 sequence length on 32 TPU v5p so we have

$$ \begin{align*} C &= 459 \times 10^{12} \\ M &= 2765 \times 10^{9} \\ T &= 4096 \\ A &= 32 \\ K &= 4 \cdot 32 \cdot 8 \cdot 128 = 131 \times 10^{3} \\ P &= 8 \times 10^{9} \\ B_d &= 44 \\ k &= 8 \\ \lambda &= 0.5 \end{align*} $$

solving we obtain $r \approx 1.5$ and the optimal allocation for the train to inference chips is roughly 40%. There are a few assumptions in this model such as every decode step has to load the whole cache⁸ and that the mean sequence length is used but in reality, we are stalled by the tail of the generation distribution. Regardless, a simple roofline analysis like this gives us a good starting point in how we should think about allocating our compute⁹. For example if we optimize the memory required by the inference chips and load a larger $B_d$, this analysis would suggest to dedicate more chips to training and vice versa.

Results

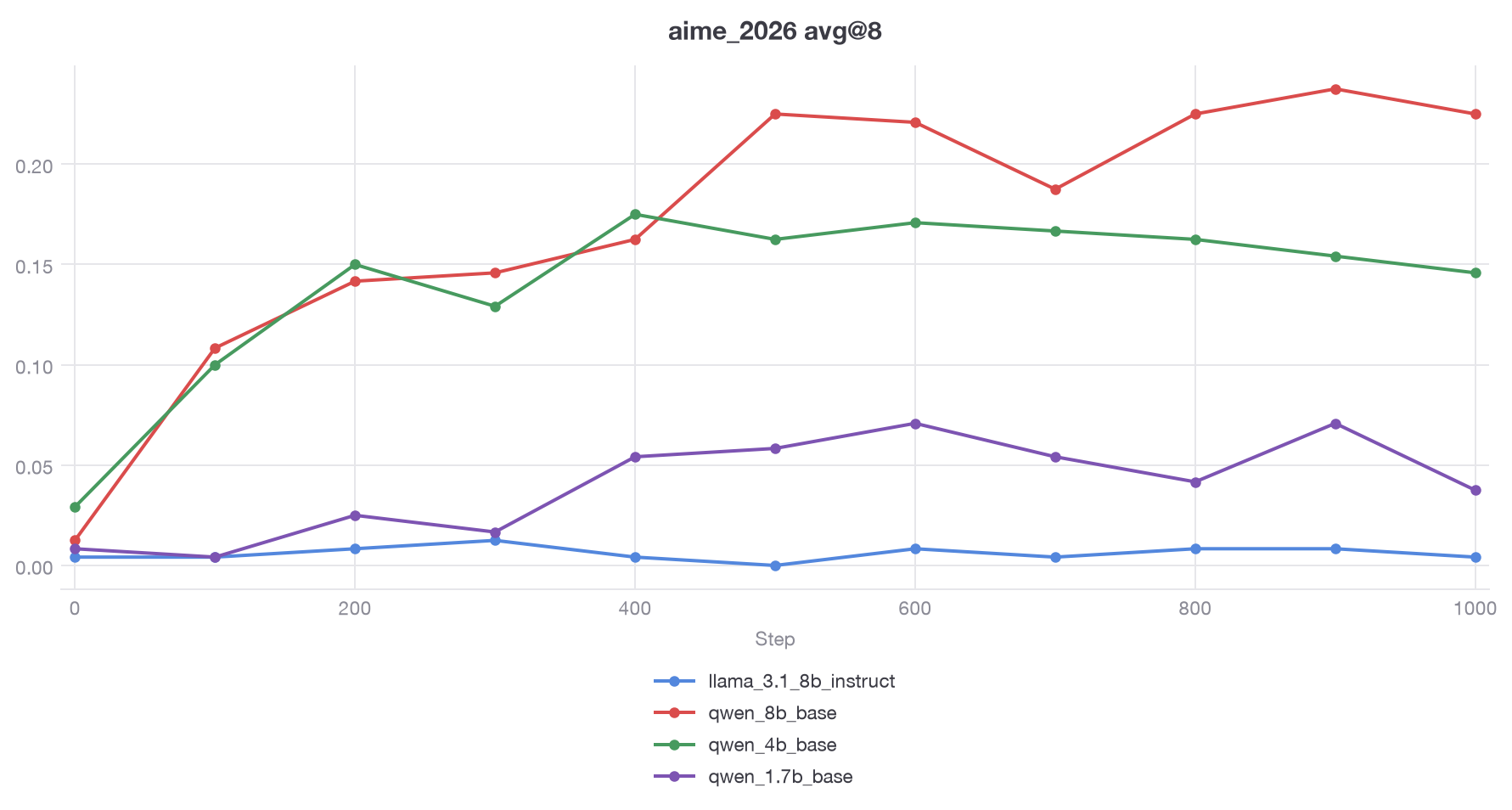

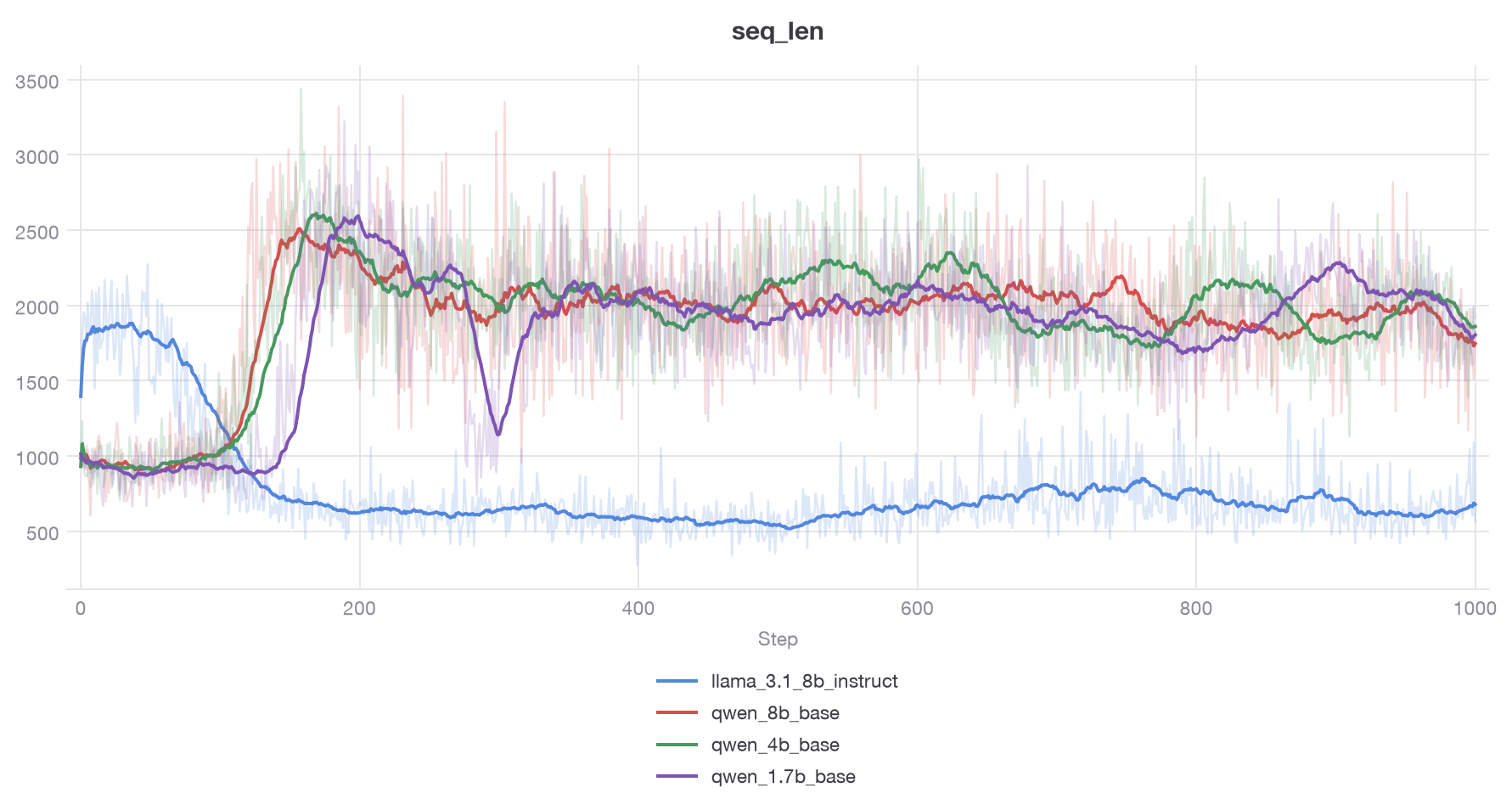

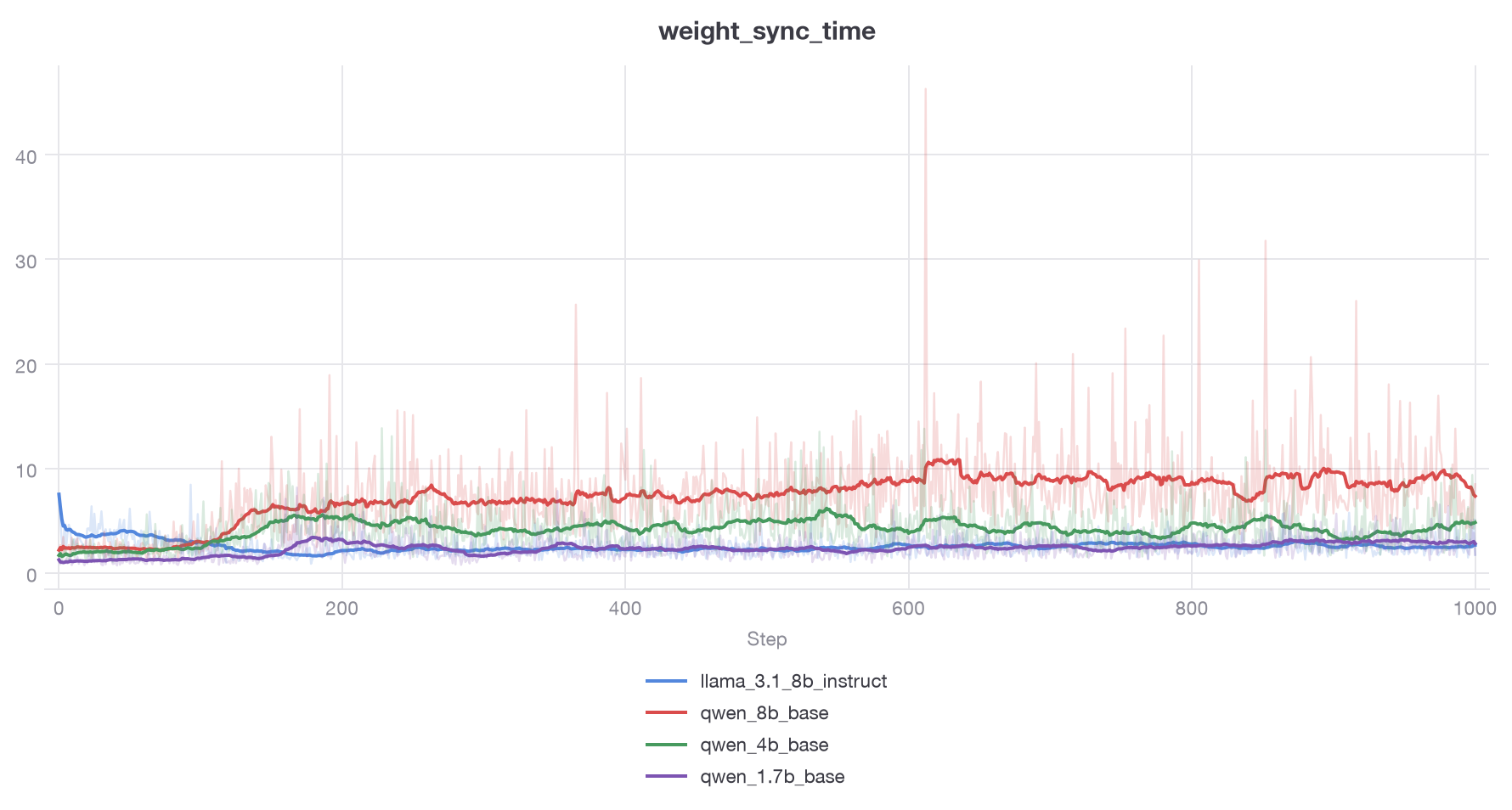

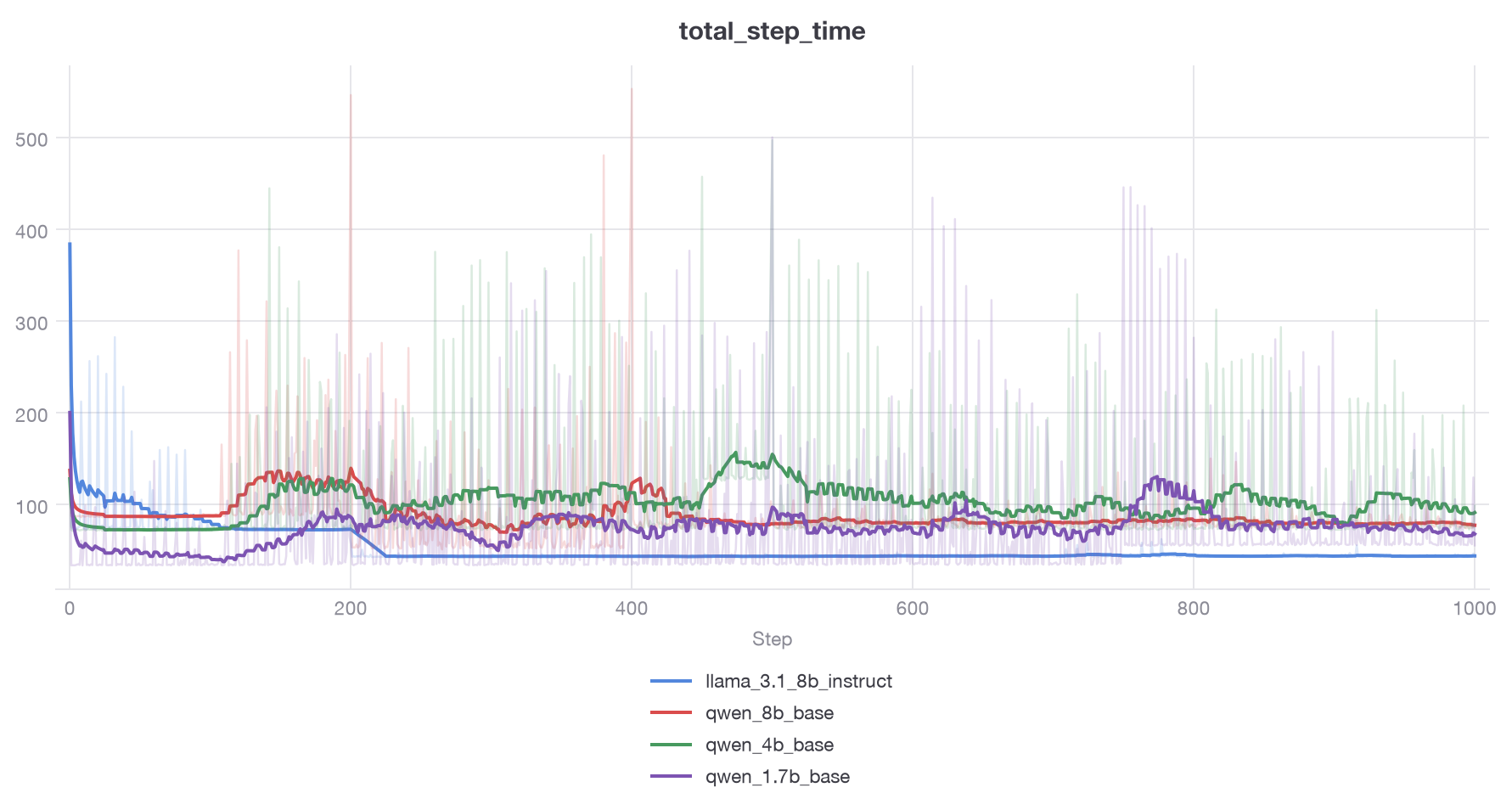

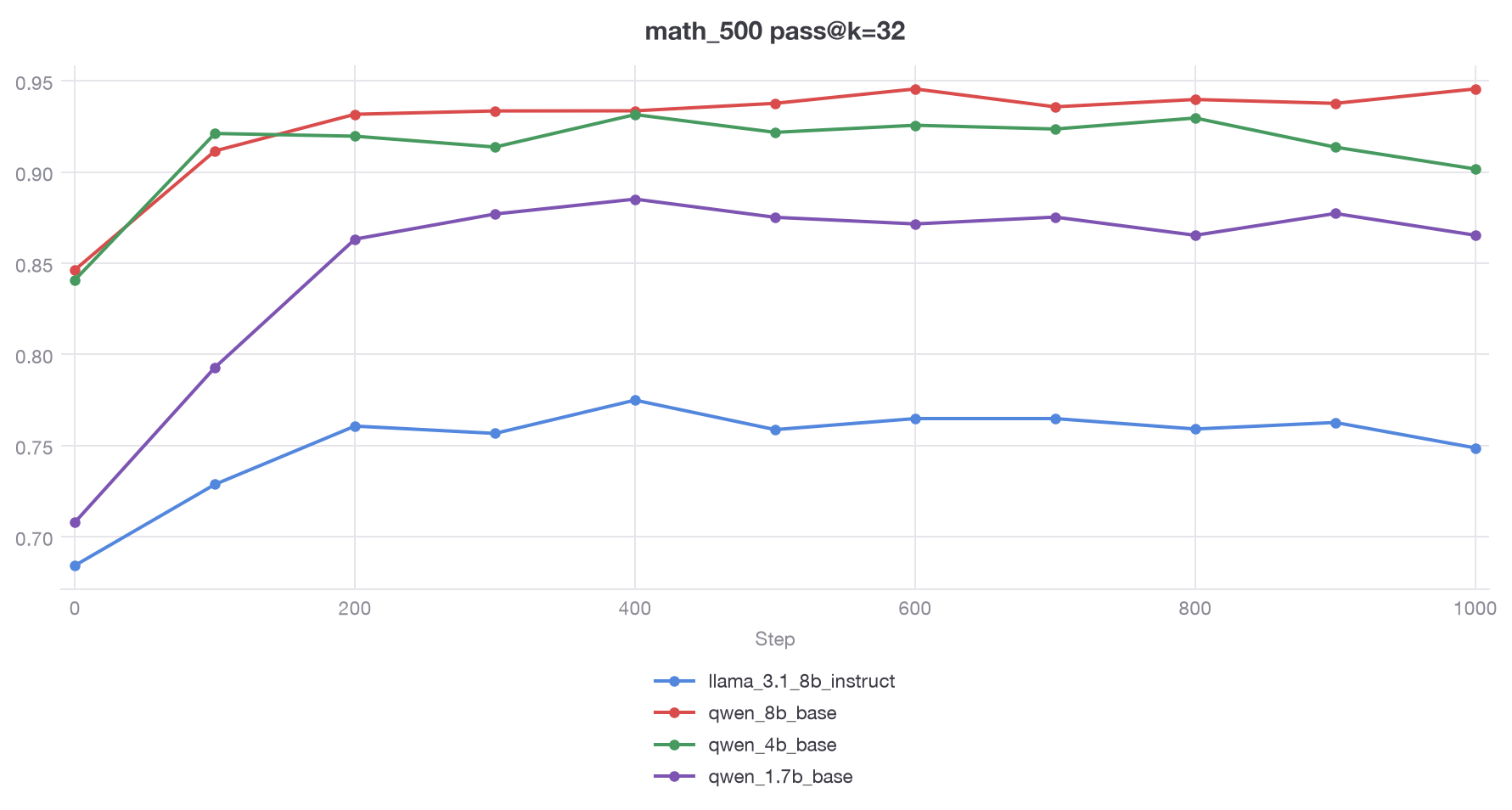

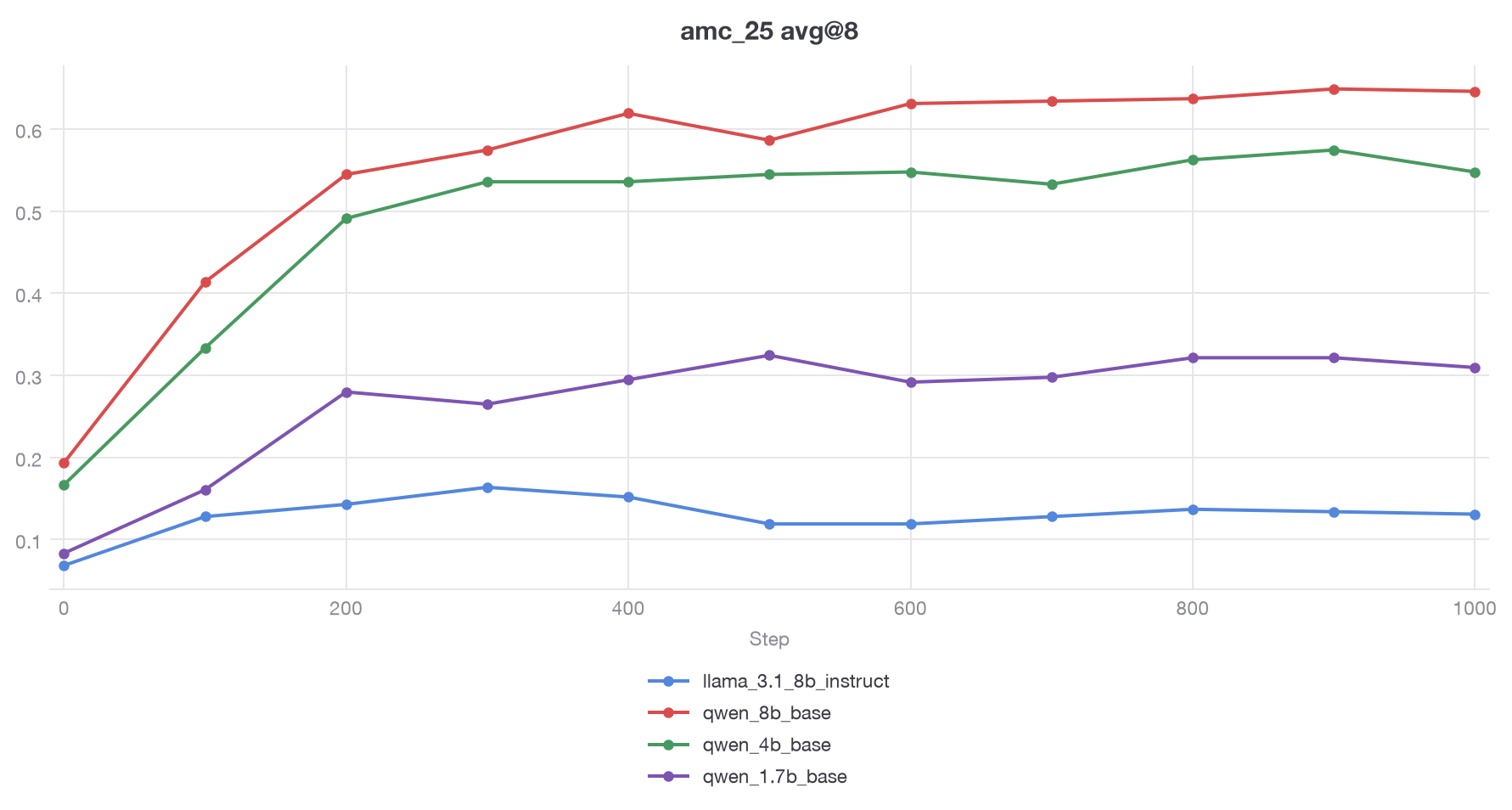

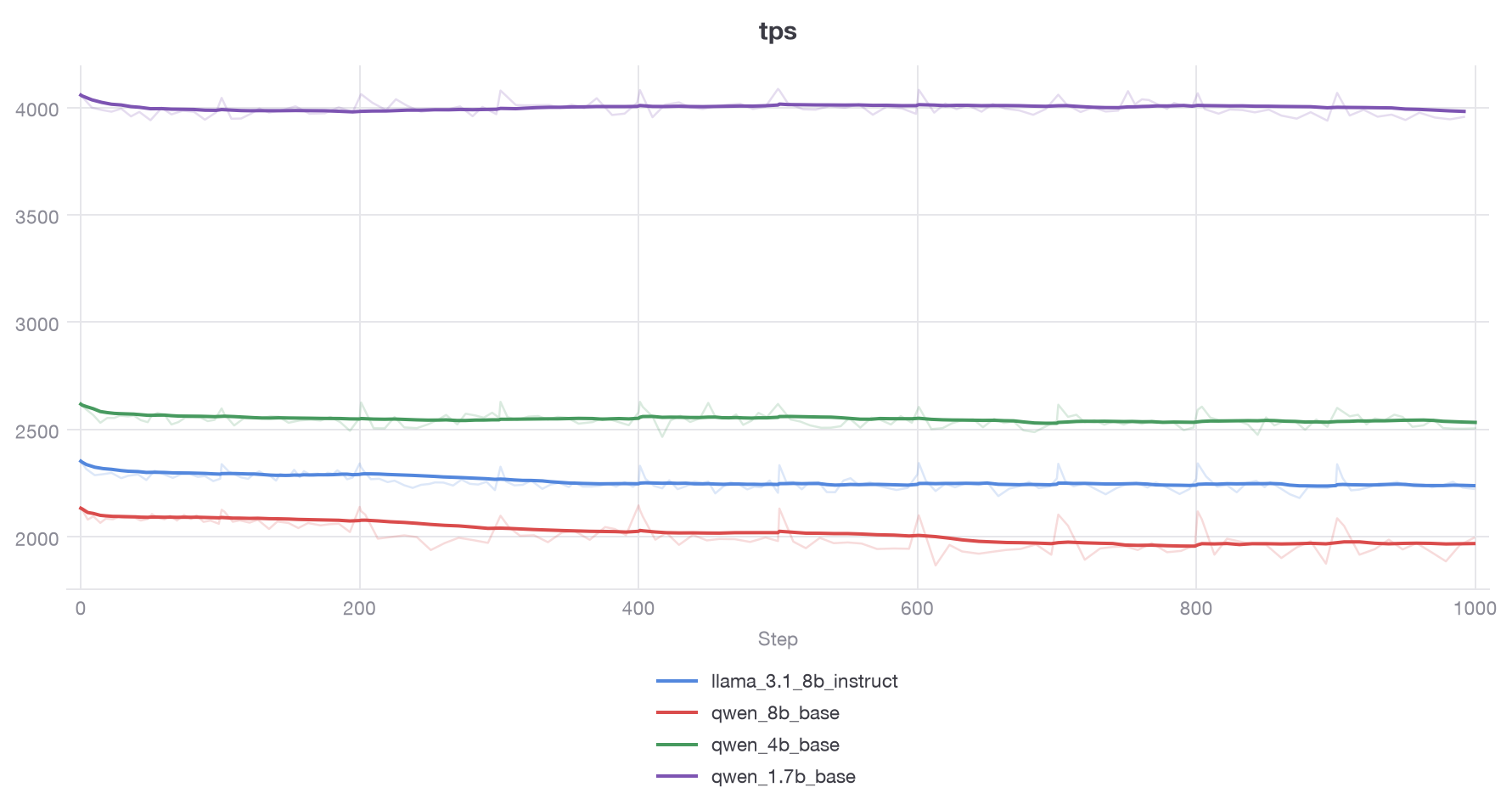

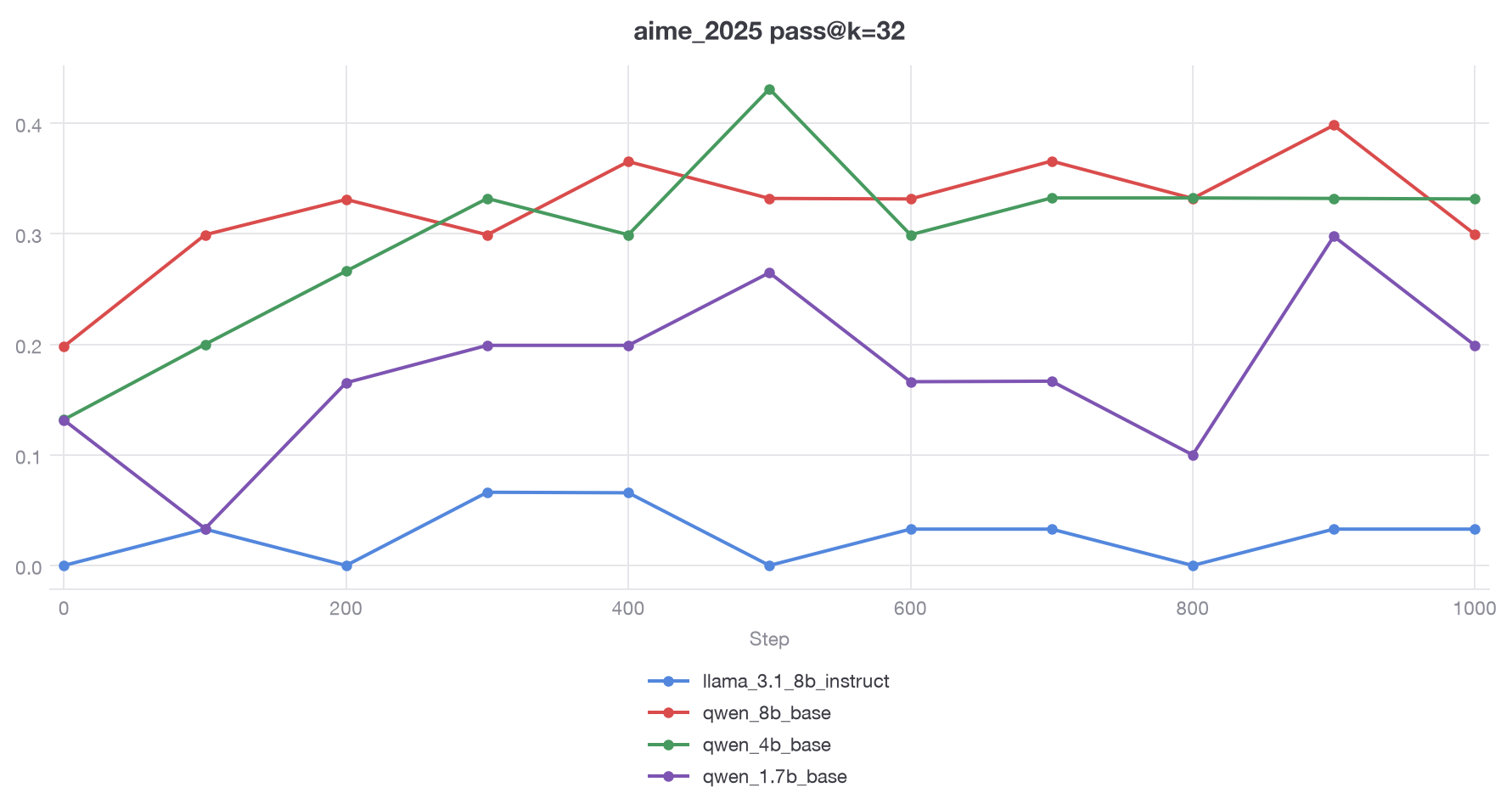

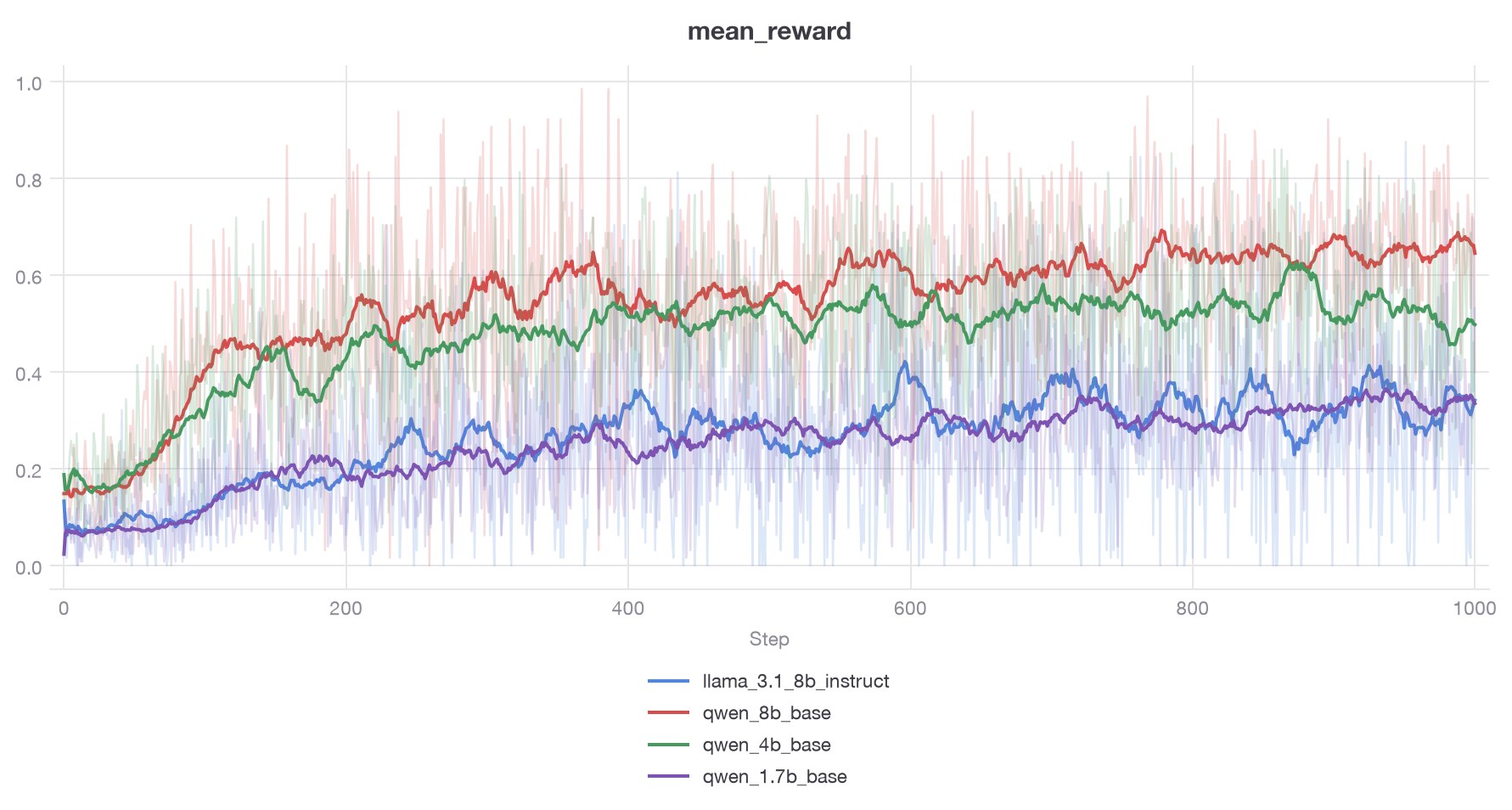

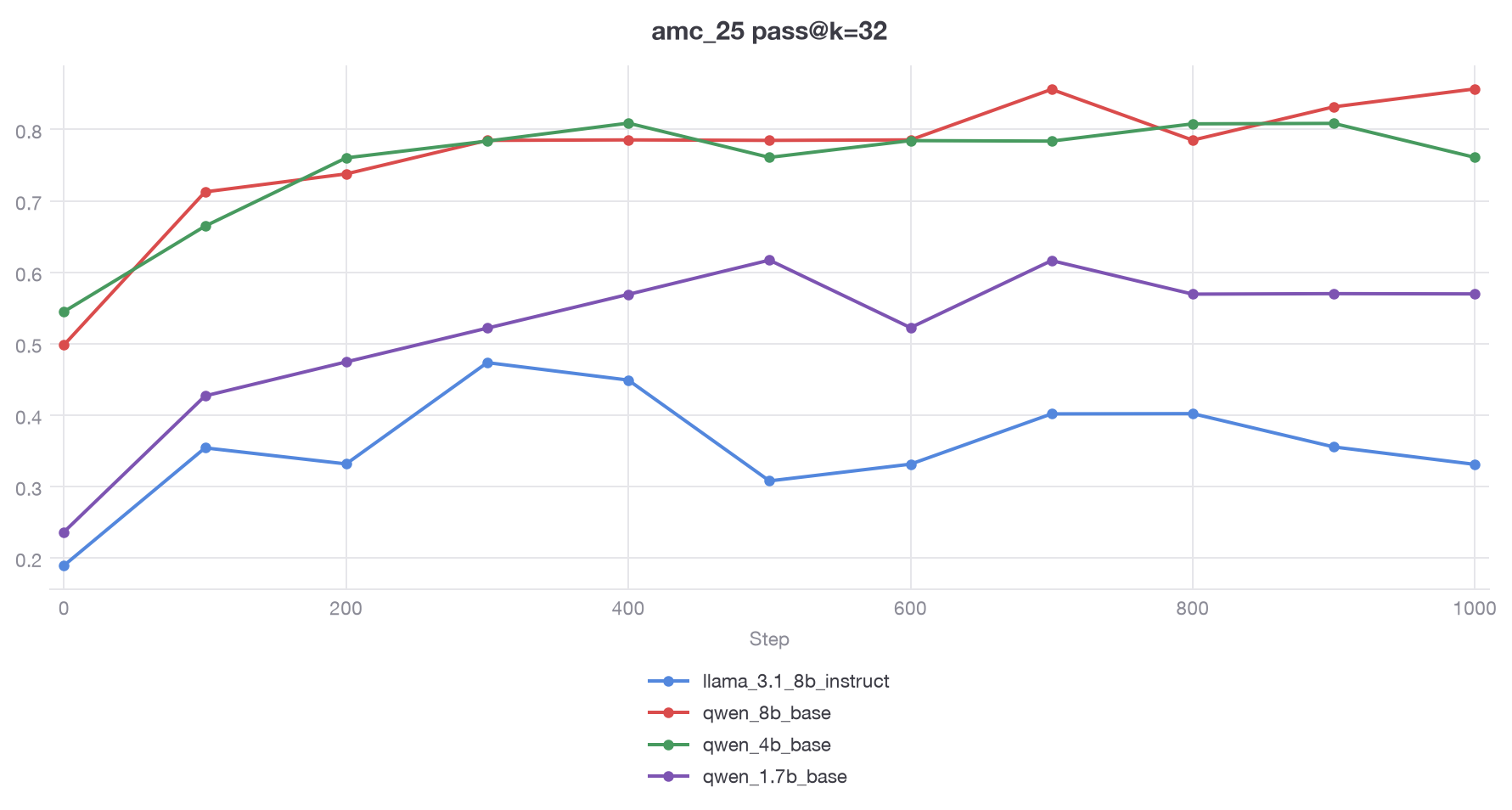

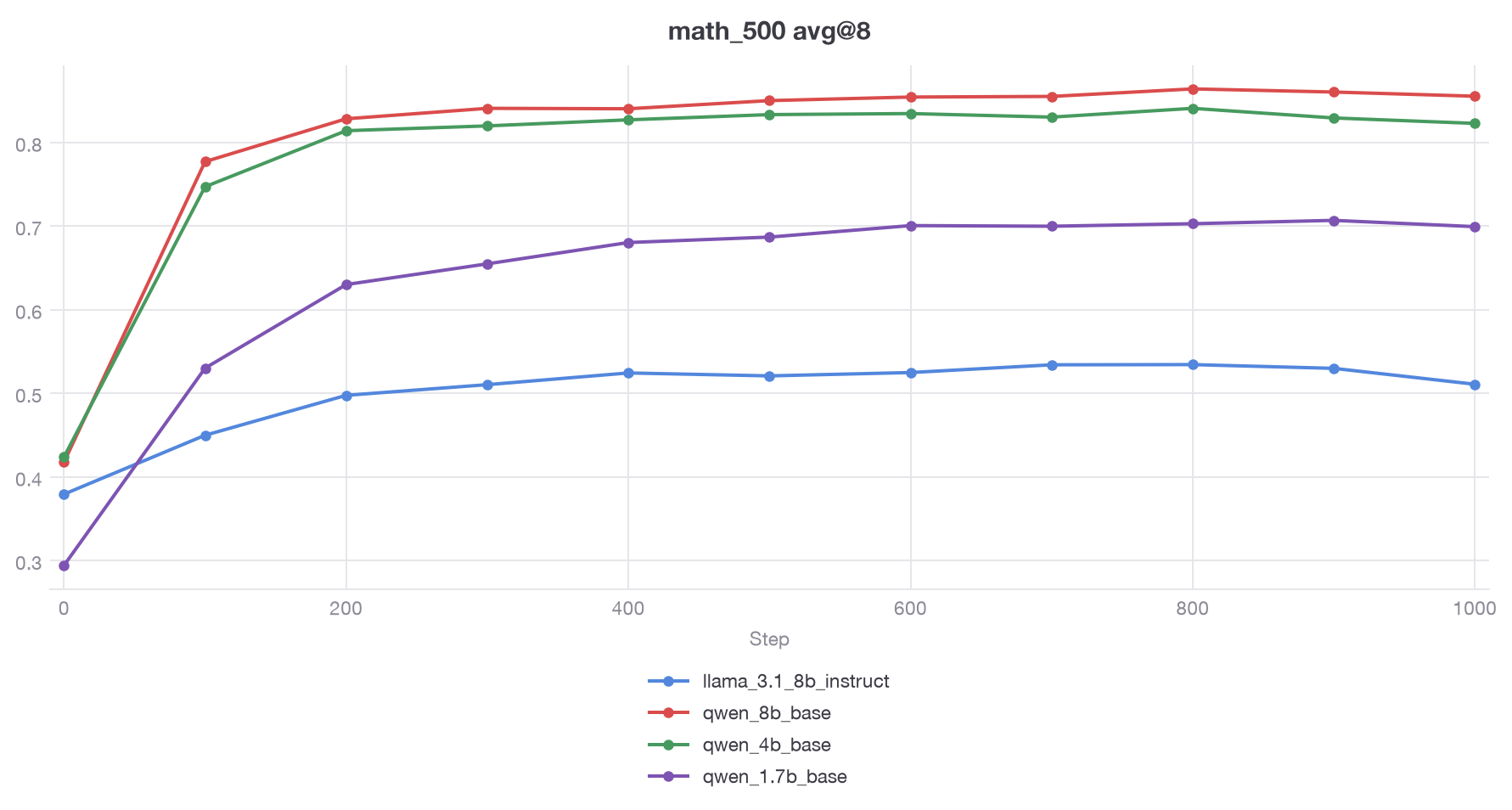

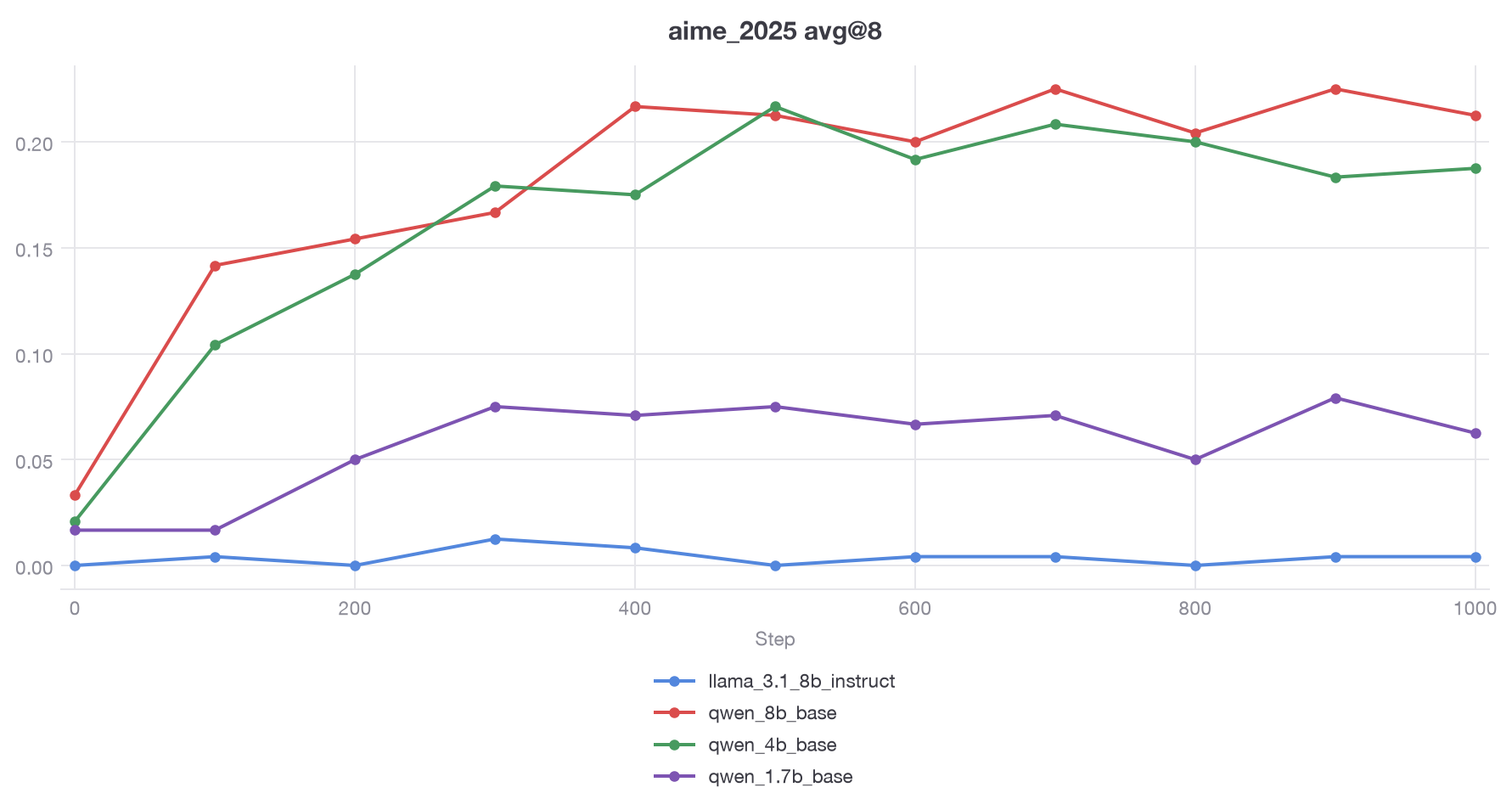

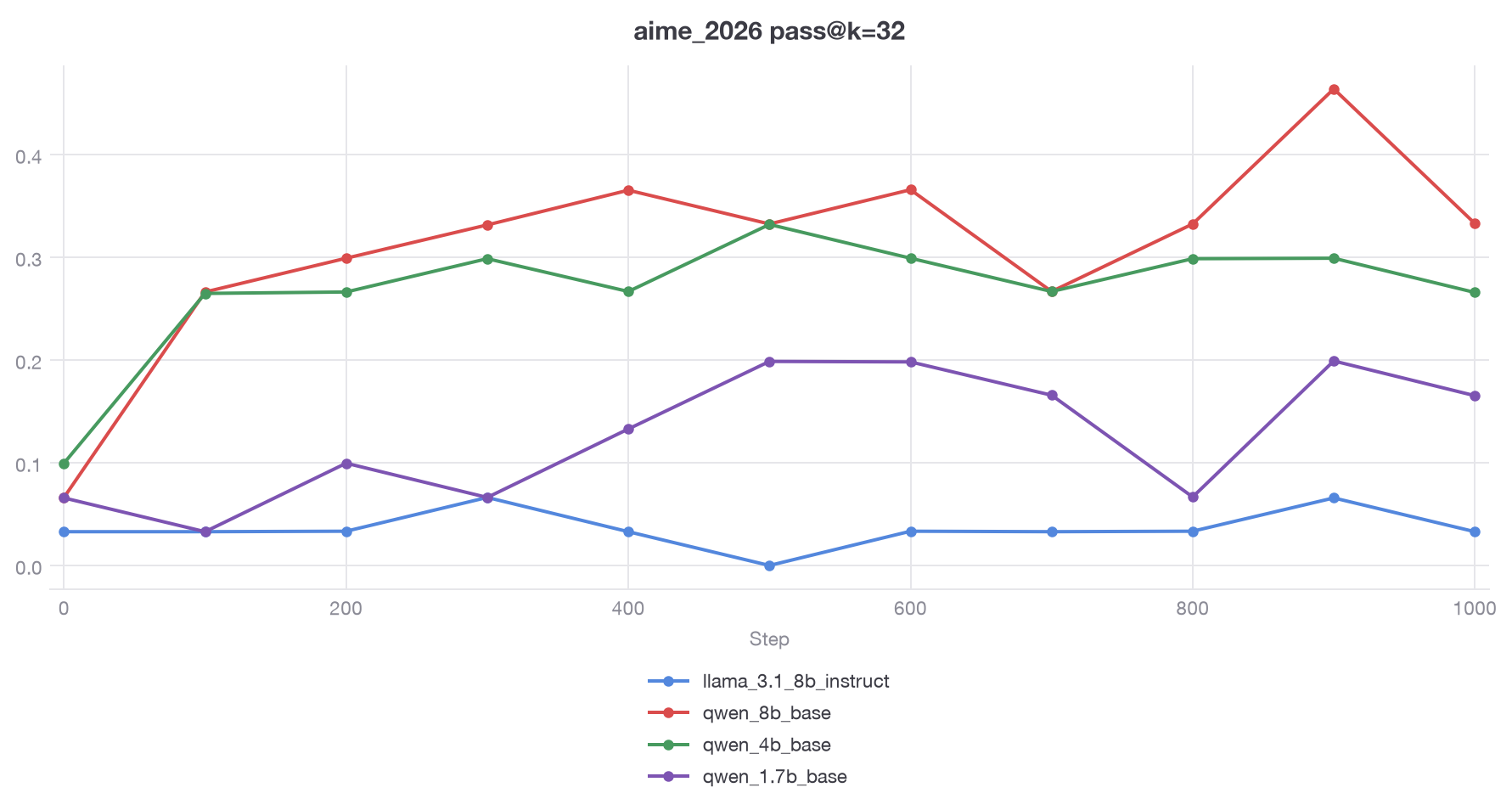

Below we report results for Qwen3 1.7B, 4B and 8B base models and Llama 3.1 8B Instruct training on math RLVR using a subset of DAPO-Math-17k and evaluated on MATH-500, AMC 25, AIME 25 and AIME 26 with sequence length 4096. We trained for up to 1000 steps on a TPU-v5p-64 (32 chips), split 50/50 for train and inference. For the Qwen models, we use CISPO with an lr of 1e-6 and for Llama we noticed instabilities with CISPO due to no lower-bound clipping and hence switched to Dr. GRPO with $\epsilon_{\text{low}}$ of 0.2, $\epsilon_{\text{high}}$ of 0.28 and an lr of 4e-7 [14]. The model parameters and optimizer state are kept in fp32 and inference is done with bf16 weights.

Conclusion

We present an Async RL stack in pure JAX targeted towards quick research iteration. We covered the core parts of the stack alongside the unique challenges that are presented when choosing JAX as our framework for implementation. If any of this excites you, feel free to reach out!

Acknowledgements

Thank you to Zak and the TRC program for the compute, Chinmay Jindal for contributing to the stack alongside proofreading early versions of this blog and William Zeng for helping with the infrastructure tooling which saved countless TPU hours.
